Hydraulic cylinders are vital components in countless industrial applications, from construction machinery to manufacturing equipment. Their performance and lifespan largely depend on proper installation. This article explores the common installation methods of hydraulic cylinders and highlights critical precautions to ensure optimal functionality.

Common Installation Methods of Hydraulic Cylinders

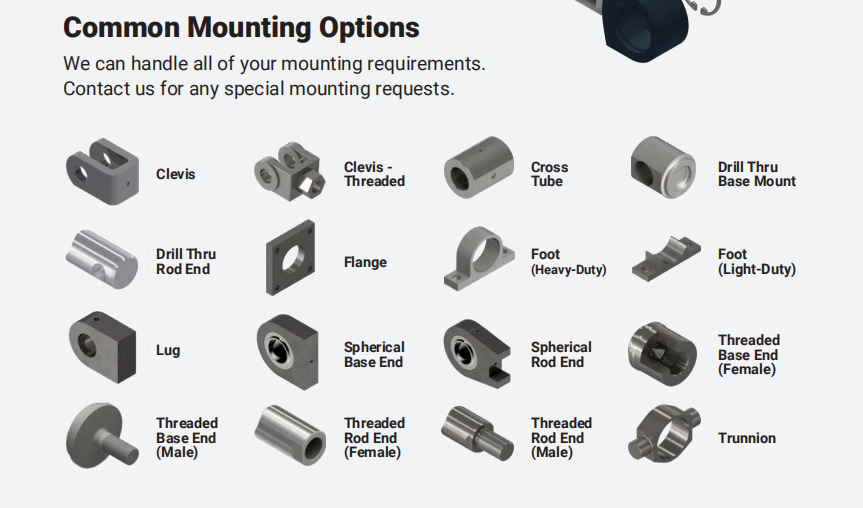

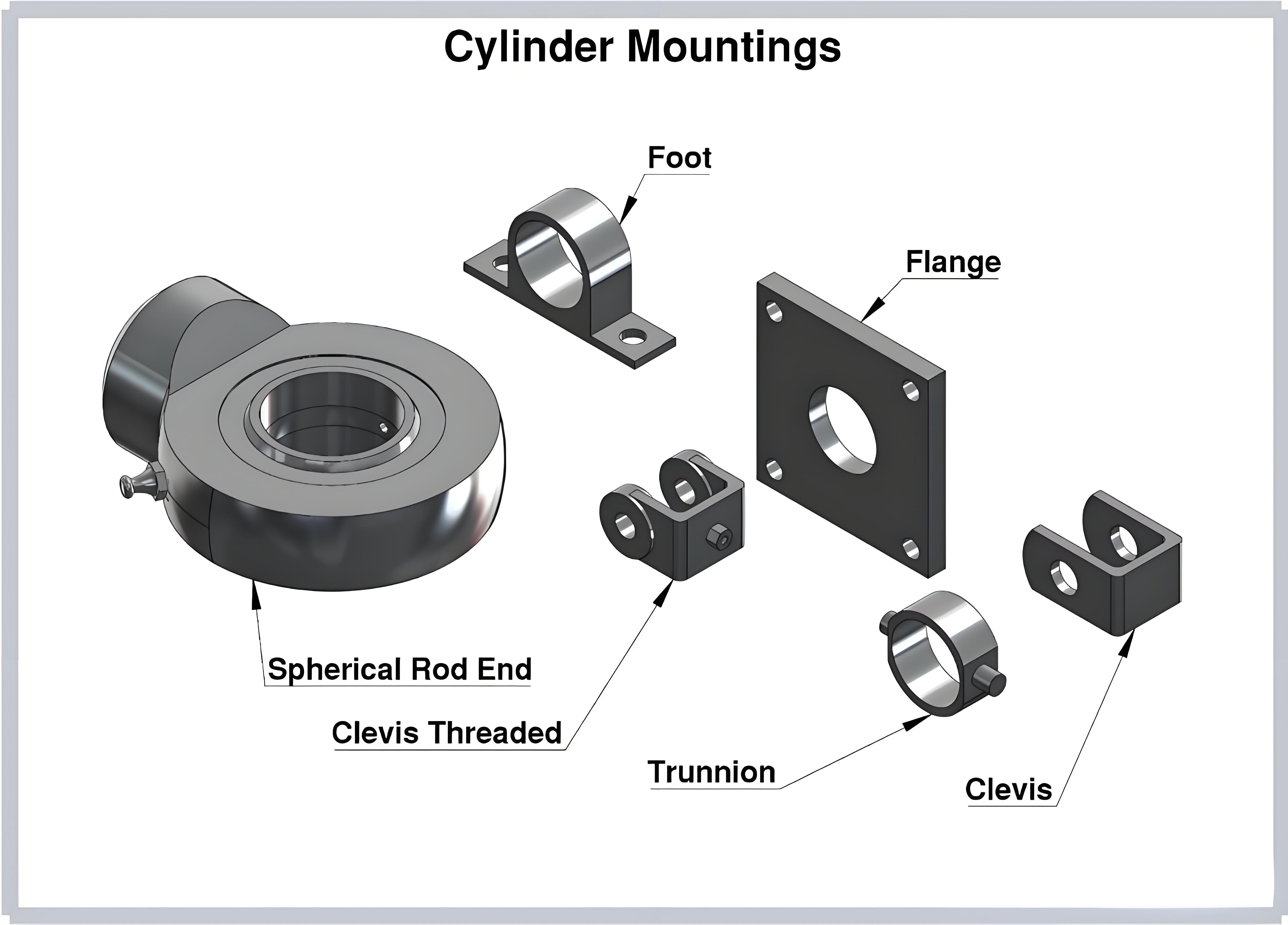

Hydraulic cylinders can be installed in various ways, each designed to accommodate specific operational requirements, load conditions, and space constraints. The following are the most widely used installation types:

1. Flange Mounting

Flange mounting is one of the most stable installation methods, suitable for heavy-load applications. In this design, the cylinder is attached to a fixed structure using a flange—typically a circular or square plate with pre-drilled holes—located either at the cylinder’s head (cap end) or rod end. The flange distributes the load evenly across the mounting surface, reducing stress concentration. This method is commonly used in presses, injection molding machines, and large industrial robots where high rigidity and precision are essential. However, it requires accurate alignment during installation to prevent binding, and the mounting surface must be flat and smooth to ensure proper contact.

2. Trunnion Mounting

Trunnion mounting allows the cylinder to pivot, making it ideal for applications that involve rotational movement or misalignment. Trunnions are cylindrical projections (or shafts) integrated into the cylinder’s barrel—usually near the midpoint or at the cap end—that fit into bearings mounted on a fixed frame. This design enables the cylinder to swing freely, accommodating angular displacements while transmitting linear force. Common uses include agricultural machinery (such as tractor loaders), construction equipment (like excavator arms), and mining tools. To ensure smooth operation, the trunnion bearings must be properly lubricated, and the cylinder should be aligned to minimize radial loads on the trunnion shafts.

3. Clevis Mounting

Clevis mounting is a versatile option for applications requiring moderate pivoting capability. It involves attaching a clevis—a U-shaped bracket— to either the cylinder’s cap end or rod end. A pin passes through the clevis and a fixed yoke, allowing the cylinder to rotate around the pin. This method is simpler and more cost-effective than trunnion mounting, making it suitable for smaller cylinders in applications like door actuators, material handling equipment, and light-duty machinery. However, the clevis and pin are subject to shear forces, so it is crucial to select components with sufficient strength for the application’s load requirements. Additionally, the pin must be secured with a cotter pin or locknut to prevent accidental disassembly.

4. Foot Mounting

Foot mounting is a straightforward method where the cylinder is attached to a fixed surface using feet—flat, rectangular or circular bases—integrated into the cylinder’s barrel. The feet are drilled with holes for bolts, which fasten the cylinder to the mounting structure. This design is ideal for stationary applications where the cylinder operates in a vertical or horizontal orientation with minimal movement, such as in hydraulic lifts, conveyor systems, and stationary presses. Foot mounting provides good stability but requires a rigid and level mounting surface to avoid bending stress on the cylinder barrel. It is also important to ensure that the bolts are tightened evenly to prevent uneven load distribution.

Key Precautions for Hydraulic Cylinder Installation

Proper installation is critical to prevent premature wear, leaks, and mechanical failure of hydraulic cylinders. The following precautions should be strictly followed during installation:

1. Ensure Accurate Alignment

Misalignment is one of the leading causes of hydraulic cylinder failure. When installing the cylinder, it must be aligned with the load it is intended to move. Both axial (linear) and angular misalignment can cause excessive friction between the piston rod and the cylinder’s seals, leading to seal damage, oil leaks, and accelerated wear. To ensure alignment:

2. Clean All Components Thoroughly

Contamination is a major threat to hydraulic systems, as even small particles of dirt, dust, or metal can damage the cylinder’s seals, piston, and cylinder wall. Before installation:

3. Select the Right Fasteners

The fasteners used to mount the cylinder (e.g., bolts, pins, nuts) must be strong enough to withstand the application’s load and operating conditions. Using undersized or low-quality fasteners can lead to loosening, shearing, or failure of the mounting structure. When selecting fasteners:

4. Check Seal Installation

The seals in a hydraulic cylinder are responsible for preventing oil leaks and maintaining pressure. Improper seal installation can lead to leaks, reduced system efficiency, and contamination. To ensure proper seal installation:

5. Test the System After Installation

After installing the hydraulic cylinder, it is essential to test the system to ensure that it operates correctly and safely. The test should include:

Hydraulic cylinder installation is a critical step that directly impacts the performance, reliability, and lifespan of the cylinder and the entire hydraulic system. By selecting the appropriate installation method (flange, trunnion, clevis, or foot mounting) based on the application’s requirements and following the key precautions—ensuring alignment, cleaning components, using the right fasteners, checking seals, and testing the system—you can maximize the efficiency and longevity of your hydraulic cylinder. Always refer to the manufacturer’s installation guidelines for specific recommendations, as different cylinder models may have unique requirements.
