Hydraulic Cylinder Broken: When Is It Worth Refurbishing?
Дата: 2025-08-25 09:32:57Просматривать: 57


Hydraulic cylinders are the workhorses of countless industrial systems, powering everything from construction machinery and agricultural equipment to manufacturing lines and mining operations. These critical components convert hydraulic energy into linear mechanical force, enabling heavy lifting, precise positioning, and repetitive motion. However, like all mechanical parts, hydraulic cylinders are prone to wear, damage, and failure over time. When a hydraulic cylinder breaks down, equipment operators and maintenance managers face a crucial decision: should they replace the faulty cylinder with a new one or invest in refurbishment?

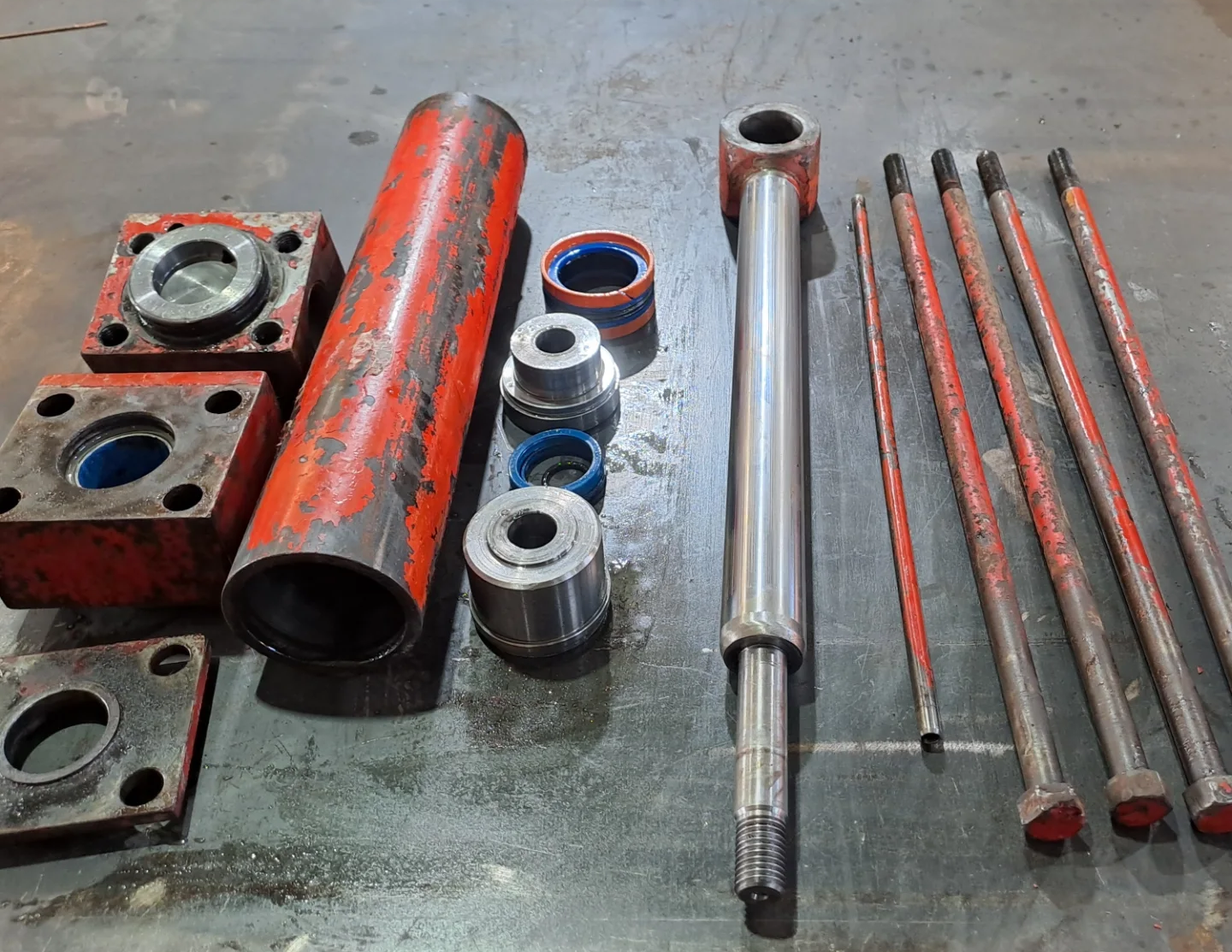

Refurbishment, also known as rebuilding or reconditioning, involves disassembling the cylinder, inspecting all components, replacing worn or damaged parts, and reassembling the unit to meet or exceed original performance standards. While replacement may seem like the quicker or simpler option, refurbishment often offers significant advantages in terms of cost, sustainability, and equipment downtime—but only under the right circumstances. This article explores the key factors that determine whether refurbishing a broken hydraulic cylinder is a worthwhile investment.

1. The Extent of Damage: Assessing Repairability

The first and most critical factor to consider is the severity and type of damage to the cylinder. Not all failures render a cylinder beyond repair; in fact, many common issues can be effectively addressed through refurbishment. Here are scenarios where damage is typically repairable:
  • Worn Seals and Gaskets: Leaks are one of the most common hydraulic cylinder problems, and they often stem from degraded seals, O-rings, or gaskets. These components are designed to be replaced regularly, and their failure rarely affects the cylinder’s core structural integrity. Refurbishment in this case involves removing old seals, cleaning the sealing surfaces, and installing new, high-quality replacements—an affordable and straightforward process.
  • Scored or Pitted Pistons/Rods: Minor surface damage to the piston or rod (such as light scoring, pitting, or corrosion) can often be fixed through machining, grinding, or plating. For example, chrome plating can restore the rod’s smooth surface, ensuring proper seal function and preventing future leaks. Severe damage—such as deep cracks, bent rods, or a piston that is warped beyond machining limits—may make refurbishment impractical, as the cost of repairing or replacing these core components could approach or exceed the cost of a new cylinder.
  • Damaged Cylinder Tubes: The cylinder tube (or barrel) is the outer housing that contains the hydraulic fluid and guides the piston. If the tube has minor scratches, corrosion, or internal wear, it can often be honed (a precision machining process) to restore its internal smoothness. However, if the tube is cracked, dented, or has excessive wall thinning (which compromises structural strength), refurbishment is not recommended. A damaged tube poses safety risks, as it could rupture under pressure, leading to equipment failure or injury.

2. Cost Comparison: Refurbishment vs. Replacement

Cost is a primary driver of decision-making for most businesses, and when it comes to hydraulic cylinders, refurbishment often offers significant savings—if the damage is repairable. Here’s how to evaluate the cost trade-off:
  • Typical Cost Savings: On average, refurbishing a hydraulic cylinder costs 30% to 70% less than purchasing a new one. This is because refurbishment only replaces worn or damaged parts (e.g., seals, bearings, piston rings) rather than the entire unit. For large or custom cylinders—such as those used in construction cranes or industrial presses—these savings can be substantial. A new custom cylinder may cost tens of thousands of dollars, while refurbishment could cut that expense by half or more.
  • Hidden Costs of Replacement: Replacement involves more than just the price of the new cylinder. Businesses must also factor in shipping costs (especially for large cylinders), downtime during installation, and the cost of disposing of the old cylinder. Refurbishment, by contrast, often has shorter lead times (since parts are readily available) and minimizes equipment downtime—critical for operations where every hour of inactivity translates to lost revenue.
  • When Replacement Is Cheaper: Refurbishment is not always the most cost-effective option. If the cylinder is outdated (e.g., parts are no longer manufactured), or if multiple core components (e.g., rod, piston, tube) need replacement, the cost of refurbishment can quickly escalate. For small, standard-sized cylinders (e.g., those used in small agricultural machines), the cost of a new unit may be so low that refurbishment is not financially justified—especially when accounting for labor costs to disassemble and reassemble the old cylinder.

3. Availability of Parts and Lead Times

Equipment downtime is a major concern for businesses relying on hydraulic systems. When a cylinder fails, the goal is to get the equipment back up and running as quickly as possible. This makes part availability and lead times key factors in deciding between refurbishment and replacement.
  • Refurbishment for Fast Turnaround: For common cylinder models, replacement parts (seals, bearings, O-rings) are often in stock at local hydraulic service shops. This means refurbishment can be completed in a matter of days—sometimes even hours—depending on the complexity of the damage. For example, a cylinder with a leaking seal can often be refurbished and returned to service within 24 to 48 hours.
  • Long Lead Times for New Cylinders: New cylinders, especially custom or specialized ones, may have lead times of several weeks or even months. Manufacturers may need to fabricate components, source raw materials, or ship the cylinder from a distant facility. For businesses operating on tight schedules (e.g., a farm during harvest season or a construction company with a deadline), this delay can be catastrophic. In such cases, refurbishment is not just a cost-saving option—it’s a necessity to avoid costly project delays.
  • Obsolete Cylinders: For older equipment, finding a new replacement cylinder may be impossible if the manufacturer has discontinued the model. In these cases, refurbishment is often the only viable solution. Skilled hydraulic technicians can reverse-engineer hard-to-find parts or modify existing components to restore the cylinder’s functionality, extending the life of the entire equipment system.


4. Safety and Performance Considerations

Safety should never be compromised when dealing with hydraulic cylinders, which operate under high pressure (often hundreds or thousands of psi). Refurbishment can restore a cylinder to safe, reliable performance—but only if it is done correctly.
  • Refurbishment Quality Standards: Reputable hydraulic service providers follow strict quality control processes during refurbishment. This includes pressure testing the cylinder to ensure it can withstand operating pressures without leaking, inspecting all components for hidden damage (e.g., cracks in the rod), and using OEM (Original Equipment Manufacturer) or equivalent parts. A properly refurbished cylinder should perform as well as a new one, with no increased safety risks.
  • When Safety Dictates Replacement: If a cylinder has suffered catastrophic damage—such as a cracked tube, a bent rod that cannot be straightened, or internal corrosion that weakens the structure—refurbishment is not safe. Even if a damaged component is repaired, it may not meet the original strength or pressure ratings, putting operators and equipment at risk. In such cases, replacement with a new, certified cylinder is the only responsible choice.
  • Performance Requirements: Some applications demand extremely precise performance (e.g., medical equipment, aerospace manufacturing). For these, a new cylinder may be preferred, as it comes with guaranteed tolerances and performance specifications. However, for most industrial applications (e.g., construction, agriculture), a properly refurbished cylinder will meet or exceed performance requirements, making it a reliable alternative.

5. Environmental Sustainability

In an era of increasing focus on sustainability, refurbishment offers clear environmental benefits over replacement. Here’s why:
  • Reducing Waste: Discarding a broken cylinder contributes to landfill waste, as many components (e.g., steel tubes, aluminum pistons) are not easily recyclable or may end up in landfills due to contamination (e.g., hydraulic fluid residue). Refurbishment extends the life of the cylinder, keeping it out of landfills and reducing the demand for new raw materials.
  • Lower Carbon Footprint: Manufacturing a new hydraulic cylinder requires significant energy and resources—from mining iron ore for steel to processing aluminum and transporting components. Refurbishment, by contrast, uses far less energy, as it only replaces small parts rather than manufacturing an entirely new unit. This reduces greenhouse gas emissions and helps businesses meet their sustainability goals.

How to Make the Final Decision: A Step-by-Step Guide

If you’re unsure whether to refurbish or replace a broken hydraulic cylinder, follow these steps:
  1. Conduct a Thorough Inspection: Have a qualified hydraulic technician disassemble the cylinder and inspect all components. They should provide a detailed report on the extent of damage, which parts need replacement, and whether the cylinder can be safely refurbished.
  1. Compare Costs: Request a quote for refurbishment (including parts and labor) and a quote for a new cylinder (including shipping and installation). Be sure to factor in downtime costs for both options.
  1. Evaluate Lead Times: Ask how long refurbishment will take versus how long it will take to receive a new cylinder. If downtime is critical, refurbishment may be the better choice even if it costs slightly more.
  1. Consider Safety and Performance: If the technician flags any safety concerns (e.g., cracked tube, irreparable rod damage), prioritize replacement. For high-precision applications, weigh whether a new cylinder’s guaranteed performance is necessary.
  1. Factor in Sustainability: If your business has sustainability goals, refurbishment aligns with reducing waste and lowering carbon emissions.

Conclusion

Refurbishing a broken hydraulic cylinder is worth it in most cases where damage is repairable (e.g., worn seals, minor scoring), costs are lower than replacement, parts are available, and safety standards can be met. It offers significant cost savings, minimizes downtime, and supports environmental sustainability—making it a smart choice for businesses across industries. However, replacement is necessary for cylinders with severe structural damage, obsolete designs, or when the cost of refurbishment approaches that of a new unit.

By carefully evaluating the extent of damage, cost, lead times, safety, and sustainability, you can make an informed decision that keeps your equipment running efficiently and your business profitable. Remember: the key is to work with a reputable hydraulic service provider who can provide expert guidance and high-quality refurbishment services.
