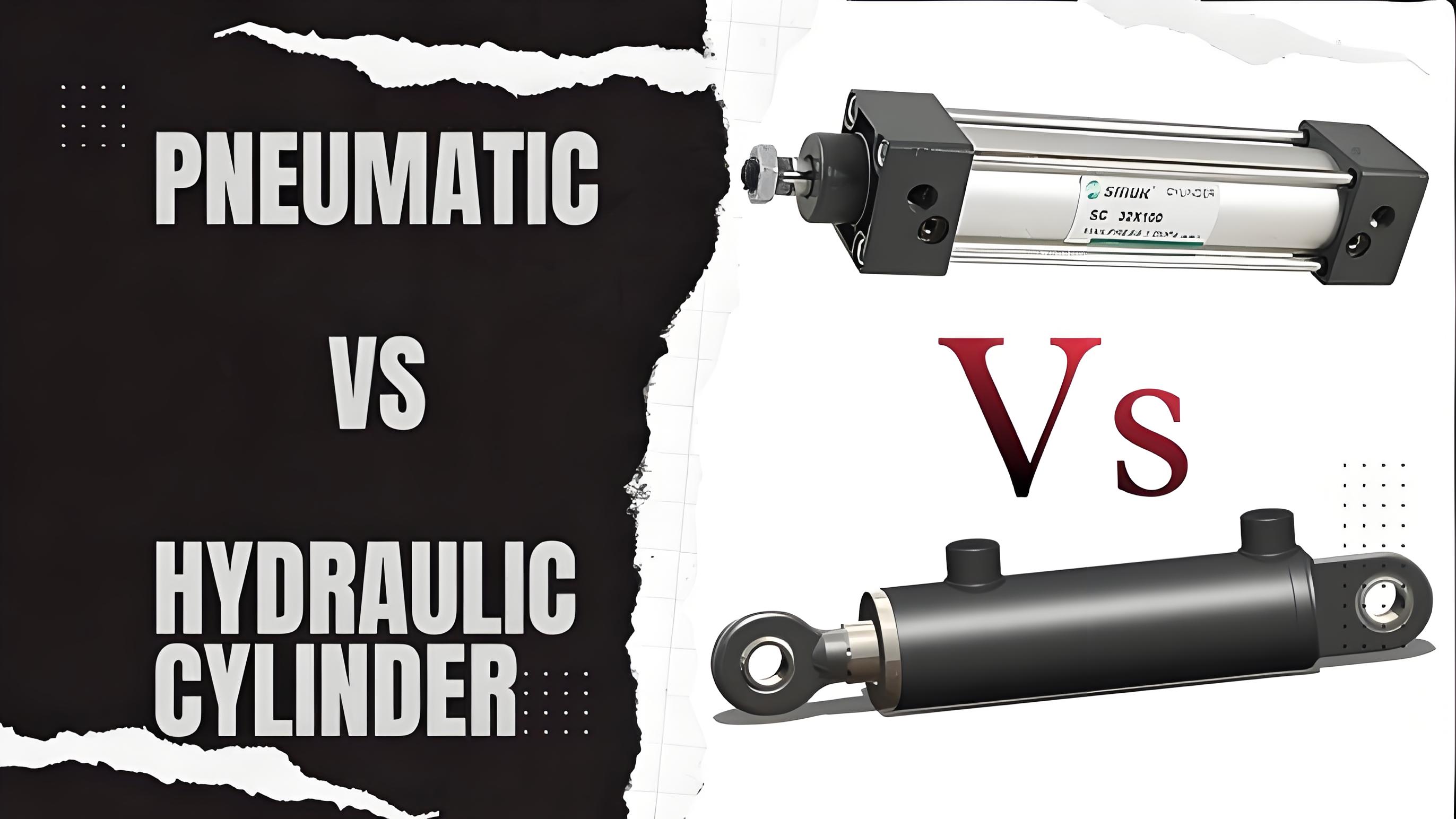

In the world of mechanical engineering, cylinders play a pivotal role in converting fluid or gas pressure into linear mechanical motion. Two of the most widely used types are hydraulic cylinders and pneumatic cylinders. While both serve the same fundamental purpose—generating force to move loads—their design, working principles, and ideal use cases vary significantly. This article breaks down their key differences, structures, performance traits, and real-world applications to help you grasp how each technology fits into industrial and mechanical systems.

1. Fundamental Working Principles: Fluid vs. Gas

The core distinction between hydraulic and pneumatic cylinders lies in the medium they use to transmit force:

Hydraulic Cylinders: Liquid-Powered Force

Hydraulic cylinders operate on Pascal’s Law, which states that pressure applied to an enclosed fluid is transmitted undiminished to all parts of the fluid and the container’s walls. These systems use incompressible liquids (typically hydraulic oil) as the working medium. When a pump applies pressure to the oil, the fluid flows into the cylinder’s chamber, pushing a piston to create linear motion. Since liquids cannot be easily compressed, hydraulic systems excel at delivering consistent, high force—even when loads are heavy or resistance is high.

Pneumatic Cylinders: Air-Powered Motion

Pneumatic cylinders, by contrast, rely on compressed air (a compressible gas) as their working medium. They function by directing compressed air (stored in a tank and delivered via a compressor) into one side of the cylinder, driving the piston forward. When air is released from that side and directed to the opposite side, the piston retracts. Unlike hydraulic fluids, air can be compressed, which means pneumatic systems prioritize speed and responsiveness over raw force. They also leverage the atmosphere: after pushing the piston, air is often exhausted directly into the air, simplifying the system design.

2. Structural Differences: Design for Their Mediums

While both cylinders share a basic structure—including a cylinder barrel, piston, piston rod, and end caps—their designs are tailored to handle their respective mediums:

Component	Hydraulic Cylinders	Pneumatic Cylinders
Seals	Use high-torque, oil-resistant seals (e.g., polyurethane) to prevent fluid leakage. Leaks are critical here, as they reduce pressure and efficiency.	Use simpler, low-friction seals (e.g., nitrile rubber) to minimize air resistance. Small air leaks are often tolerable, as air is abundant and low-cost.
Cylinder Walls	Thicker, heavier walls (made of steel or aluminum alloys) to withstand high internal pressures (often 1,000–5,000 psi).	Thinner, lighter walls (made of aluminum or plastic) since air pressure is lower (typically 80–120 psi).
Piston Rod	Longer, sturdier rods with corrosion-resistant coatings (e.g., chrome plating) to support heavy loads without bending.	Shorter, lighter rods—corrosion resistance is still important but not as critical for load-bearing.
Auxiliary Components	Require hydraulic oil reservoirs, filters, and coolers (to prevent oil overheating). Valves are larger to handle fluid flow.	Need air compressors, dryers (to remove moisture from air), and regulators (to control pressure). Valves are smaller and faster-acting.

3. Performance Comparison: Force, Speed, and Precision

When choosing between hydraulic and pneumatic cylinders, performance metrics are often the deciding factor:

Force Output

Hydraulic cylinders are the clear winners here. Thanks to incompressible fluid and high pressure, they can generate extremely high force—ranging from a few hundred pounds to hundreds of tons. This makes them ideal for heavy-duty tasks like lifting construction equipment, pressing metal parts, or clamping large workpieces in manufacturing.

Pneumatic cylinders, by contrast, produce lower force due to low air pressure. Their force output typically ranges from 50 to 1,000 pounds. They are better suited for light to medium tasks, such as opening/closing doors, pushing small components on assembly lines, or actuating switches.

Speed of Operation

Pneumatic cylinders excel at speed. Compressed air flows quickly through the system, allowing pistons to move at high velocities (often 1–5 feet per second). This speed makes them perfect for applications where rapid, repetitive motion is needed—for example, sorting products on a conveyor belt or stamping labels onto packages.

Hydraulic cylinders are slower. The viscous nature of hydraulic oil creates more resistance, so piston speeds are usually 0.1–1 foot per second. However, this slowness is an advantage in tasks that require controlled, gradual motion—like lowering a heavy load gently or adjusting the position of a machine tool with precision.

Precision and Control

Hydraulic systems offer superior precision and control. Since fluid is incompressible, the piston’s position can be adjusted with fine granularity using flow control valves. This makes hydraulics ideal for applications where accuracy is critical, such as CNC machine tools, robotic arms in automotive assembly, or heavy equipment that requires precise load positioning.

Pneumatic systems are less precise. The compressibility of air causes "cushioning"—the piston may overshoot its target slightly, especially at high speeds. While they can be controlled with regulators, they are better suited for tasks where exact positioning is not essential (e.g., pushing a part into a bin).

4. Application Scenarios: Where Each Shines

The unique traits of hydraulic and pneumatic cylinders make them suited for distinct industries and tasks:

Hydraulic Cylinders: Heavy-Duty Industries

Pneumatic Cylinders: Light-to-Medium Tasks

5. Maintenance and Durability

Both cylinder types require maintenance, but their needs differ based on their mediums:

Hydraulic Cylinders

Pneumatic Cylinders

6. Future Trends: Efficiency and Sustainability

As industries prioritize sustainability and efficiency, both technologies are evolving:

Hydraulic and pneumatic cylinders are both essential tools in mechanical engineering, but they are not interchangeable. Hydraulic cylinders are the go-to choice for high-force, precise, heavy-duty tasks, while pneumatic cylinders excel at fast, low-force, cost-effective applications. Understanding their differences—from working principles to maintenance needs—helps engineers, technicians, and even enthusiasts make informed decisions about which technology to use in a given project. Whether lifting a skyscraper’s steel beam or packaging a box of cereal, these cylinders quietly power the motion that keeps our world running.
