Hydraulic cylinder products are widely used, not only in industrial and transportation fields such as infrastructure construction and transportation, but also play an important role in the health equipment field. Especially in recent years, with the rise of the health industry, the application of hydraulic cylinders in some sports and health care equipment has been continuously expanding. Today, Weihang Machinery will take you to understand the application of hydraulic cylinder products in the fitness equipment field.

Hydraulic cylinders are applied in fitness equipment to some extent, mainly in scenarios requiring simulated resistance, exercise intensity adjustment, or mechanical structure linkage. Below is a detailed introduction to specific application scenarios, advantages, and common equipment types:

I. Application Scenarios of Hydraulic Cylinders in Fitness Equipment

1. Resistance Adjustment Systems

   - Hydraulic oil flow in cylinders generates resistance, replacing traditional weight plates or springs to achieve smoother and continuous resistance changes.

   - Examples: Rowing machines, leg trainers, and pressing machines. For instance, some rowing machines use hydraulic cylinders to control handle resistance, simulating real rowing experiences.

2. Motion Trajectory Control

   - Hydraulic cylinders precisely control the movement trajectory of mechanical arms or seats to ensure proper form and reduce injury risks.

   - Examples: Seated chest press machines and leg extension trainers,through the linkage mechanical structure of the hydraulic cylinder, the movement trajectory is made to conform to ergonomics.

3. Multi-Angle Training Switching

   - Some multifunctional fitness equipment uses hydraulic cylinders for quick mode switching (e.g., adjusting the angle of a sit-up board or the height of a machine seat).

   - Examples: Comprehensive trainers and adjustable dumbbell benches.

4. Rehabilitation Training Equipment

   - In medical-grade rehabilitation equipment, hydraulic cylinders provide controllable passive resistance for joint mobility training or muscle strength recovery.

   - Examples: Knee rehabilitation trainers and upper limb strength recovery machines.

II. Advantages of Hydraulic Cylinders vs. Traditional Resistance Systems

III. Common Fitness Equipment Types Using Hydraulic Cylinders

1. Strength Training Machines

   - Hydraulic Rowing Machines: Simulate water or air resistance via cylinder resistance for realistic rowing experiences.

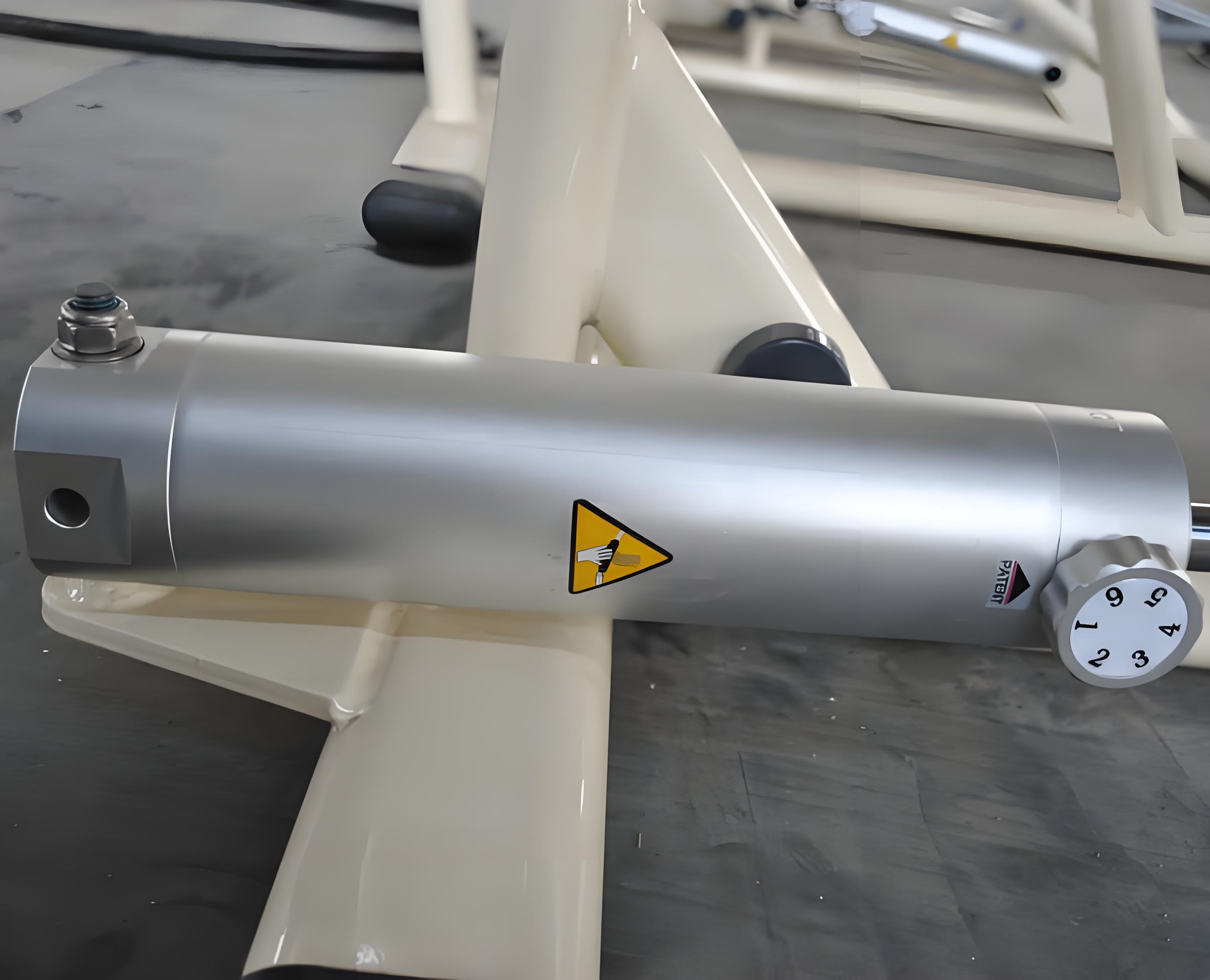

   - Hydraulic Chest Press Machines: Cylinders drive push rods, with resistance adjustable via knobs or electronic systems.

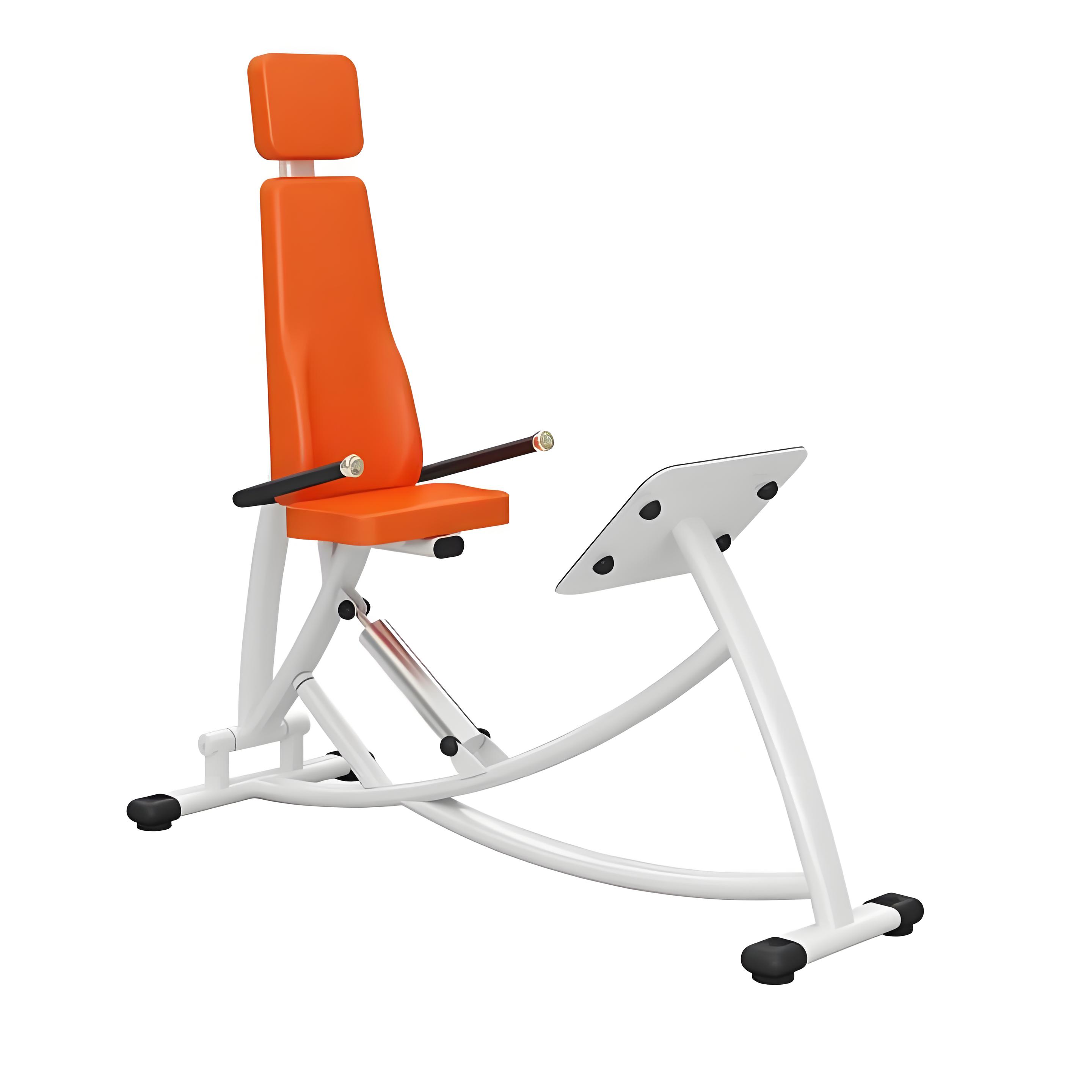

   - Hydraulic Leg Trainers: Used for squats and leg presses, with cylinder resistance dynamically adjustable to users’ strength levels.

2. Rehabilitation Equipment

   - Hydraulic Joint Trainers: E.g., shoulder rotation trainers, controlling passive motion range and resistance via cylinders for post-surgery rehabilitation.

   - Balance Training Equipment: Some balance devices use the instability of hydraulic cylinders to enhance core muscle coordination.

3. Commercial Comprehensive Trainers

   - High-end commercial gym equipment (e.g., select models from Cybex, Life Fitness) often incorporates hydraulic cylinders to offer diverse resistance modes and intelligent training data feedback.

IV. Limitations and Alternatives

1. Limitations

   - Higher Costs: Manufacturing and maintenance costs of hydraulic systems exceed traditional mechanical structures.

   - Environmental Sensitivity: High or low temperatures may affect hydraulic oil performance, requiring additional temperature control.

   - Weight Constraints: Large hydraulic cylinders are heavy, unsuitable for portable fitness equipment.

2. Alternative Solutions

   - Pneumatic Resistance Systems: E.g., air resistance rowing machines, using air compression for resistance—lightweight and low-cost.

   - Electromagnetic Resistance Systems: Use electromagnetic induction to adjust resistance (e.g., in some treadmills and elliptical machines), offering fast response and no maintenance.

   - Elastic Rope/Spring Resistance: Common in home-use small equipment (e.g., resistance bands), with simple structures and low costs.

V. Conclusion

Hydraulic cylinders are primarily used in mid-to-high-end strength training equipment and rehabilitation devices, leveraging their smooth resistance, precise control, and low noise to meet professional training and medical rehabilitation needs. However, due to cost and maintenance limitations, they are less prevalent than traditional mechanical or pneumatic resistance systems. When purchasing related equipment, consider usage scenarios (home/commercial, rehabilitation/fitness) and budget comprehensively.
