Hydraulic cylinders serve as the "muscle" of countless mechanical systems, converting hydraulic fluid pressure into linear mechanical force. However, there is no "one-size-fits-all" hydraulic cylinder—its design, material, and performance characteristics are strictly customized to match the unique demands of the machinery it powers. Below is a scientific breakdown of hydraulic cylinder features across typical industrial and mobile applications.
Construction equipment (e.g., excavators, bulldozers, cranes) operates in harsh, high-impact environments, so their hydraulic cylinders prioritize durability, load-bearing capacity, and resistance to external damage.
- Structural Design: Most adopt a double-acting cylinder structure, enabling both extension (to lift/ push loads) and retraction (to lower/pull) with equal force—critical for tasks like excavator bucket digging or crane boom lifting.
- Material & Protection: The cylinder barrel is made of high-strength alloy steel (e.g., 45# steel or 27SiMn) with a hard chrome-plated inner surface, which reduces friction and prevents wear from sand, gravel, or construction debris. The rod often uses stainless steel or alloy steel with a corrosion-resistant coating to withstand rain, mud, and chemical exposure on job sites.
- Pressure Rating: Designed for medium to high pressure (16–31.5 MPa), as construction tasks require lifting heavy loads (e.g., excavators handling 10–50+ ton materials) or withstanding sudden impact forces (e.g., bulldozers pushing rocks).
Agricultural machinery (e.g., tractors, harvesters, seeders) focuses on precision control, corrosion resistance, and compatibility with variable working conditions (from dry fields to wet marshes).
- Control Precision: Many use single-acting cylinders (relying on hydraulic pressure for extension and gravity/ spring force for retraction) for tasks like adjusting harvester cutting heights or lifting tractor implements. This design simplifies the hydraulic system while ensuring accurate positioning—vital for uniform seeding or crop harvesting.
- Corrosion Resistance: Cylinders are treated with special anti-rust coatings (e.g., zinc-nickel plating or powder coating) to resist corrosion from fertilizers, pesticides, and frequent exposure to moisture. Some models also feature sealed rod glands with dust-proof and water-proof lips to prevent soil and crop residues from entering the cylinder.
- Adaptability: The cylinder’s stroke length is often adjustable to match different agricultural tasks—for example, a tractor’s 3-point hitch cylinder may have a stroke range of 200–500 mm to accommodate plows, harrows, or sprayers of varying sizes.
Industrial machinery (e.g., injection molding machines, metal presses, conveyor systems) operates in relatively stable indoor environments, so their cylinders emphasize high pressure resistance, precise movement control, and long service life.

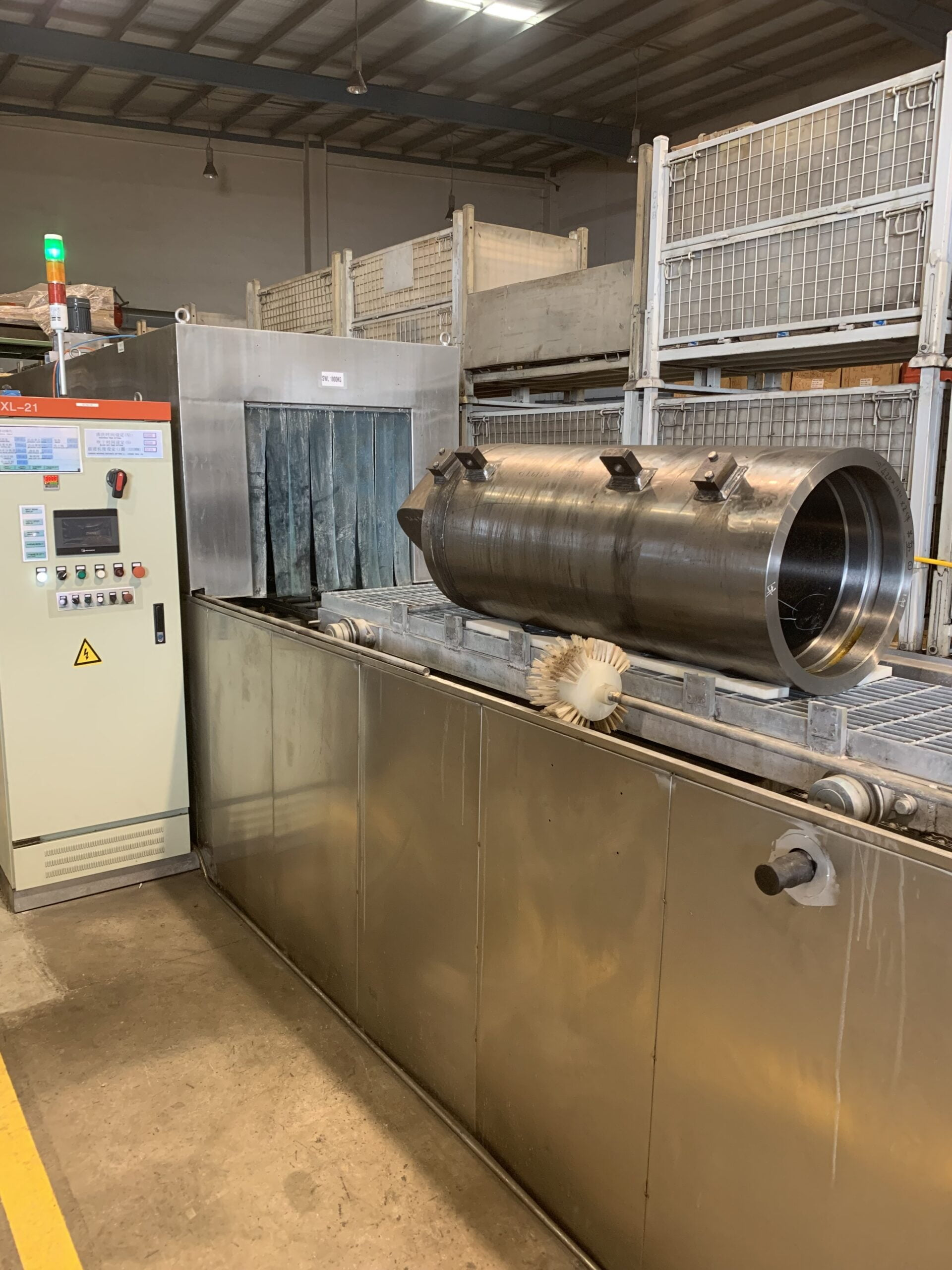

- High-Pressure Performance: Metal presses and injection molding machines require extreme force to shape materials (e.g., pressing steel plates or injecting molten plastic). Their cylinders are designed for ultra-high pressure (31.5–70 MPa) with thick-walled barrels (up to 20–50 mm) and reinforced end caps to prevent deformation under intense pressure.
- Precision & Smoothness: The inner surface of the cylinder barrel undergoes honing processing (with a surface roughness of Ra 0.2–0.4 μm) to ensure the piston moves smoothly without jitter. This is critical for injection molding machines, where even tiny deviations in cylinder movement can cause defects in plastic products.
- Sealing Systems: Equipped with high-performance seals (e.g., polyurethane or PTFE composites) that resist high temperatures (up to 120–150°C) and hydraulic oil degradation. Industrial cylinders often run continuously for 8–16 hours daily, so reliable sealing prevents oil leaks and extends maintenance intervals.
In automotive and transportation (e.g., truck dumpers, garbage trucks, vehicle suspension systems), cylinders prioritize compact design, fast response, and safety under dynamic loads.

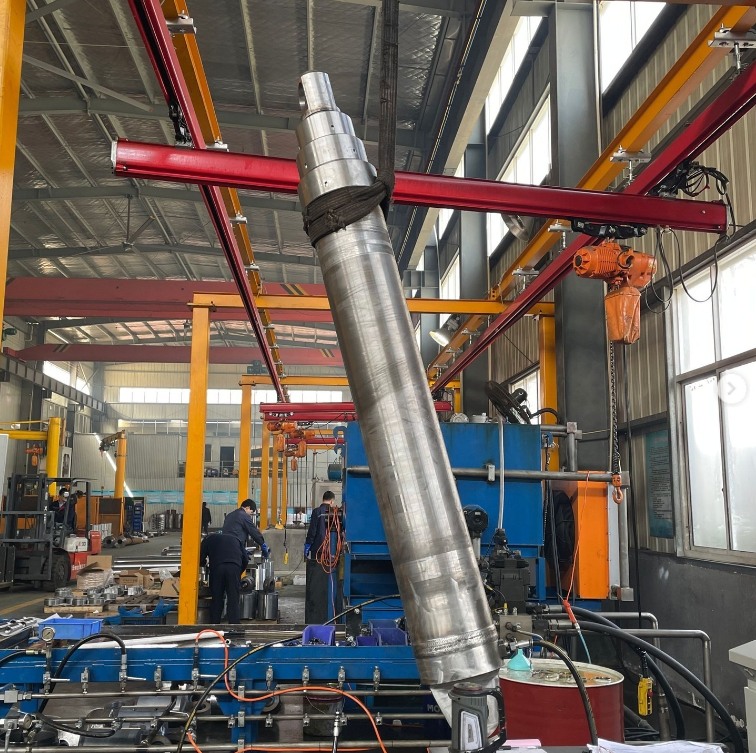

- Compact Size: Dump trucks and garbage trucks have limited installation space, so their cylinders use a "telescopic" (multi-stage) design. This structure allows the cylinder to extend to a long stroke (e.g., 1–3 meters for dumping cargo) while remaining short when retracted, saving space.
- Fast Response: The cylinder’s internal flow channels are optimized to allow hydraulic fluid to enter/ exit quickly, enabling rapid extension/ retraction—essential for dump trucks that need to unload cargo efficiently or garbage trucks that lift bins frequently.
- Safety Features: Equipped with pressure relief valves or check valves to prevent sudden cylinder collapse if hydraulic pressure is lost. For example, a truck dumper’s cylinder will lock in place if the hydraulic system fails, avoiding accidents from falling cargo.
Hydraulic cylinders are not just mechanical components—they are engineered solutions tailored to the specific challenges of each application. From the high-strength, wear-resistant cylinders in construction machinery to the precision-controlled, corrosion-resistant ones in agriculture, every feature (material, pressure rating, structure, sealing) is designed to ensure optimal performance, safety, and longevity. Understanding these differences is key to selecting the right hydraulic cylinder for a machine, reducing maintenance costs, and maximizing operational efficiency.
