Introduction

The shipping and shipbuilding industries are the lifeblood of the global economy, facilitating over 90% of international trade. They serve as the arteries that enable the seamless flow of goods across the vast oceans, connecting producers and consumers worldwide. From the bustling ports of Asia to the industrial harbors of Europe and the Americas, ships of all sizes and types transport raw materials, finished products, and everything in between.

In this vast maritime ecosystem, hydraulic cylinders play an indispensable role. These unassuming yet powerful devices are the unsung heroes that power many essential operations in both the shipping and shipbuilding sectors. They are the muscle behind the movement, providing the force needed to perform tasks that are crucial for the functionality and efficiency of ships and the construction of new vessels. Without hydraulic cylinders, the smooth operation of various shipboard systems and the construction processes in shipyards would be severely hampered, highlighting their vital importance in the maritime world.

The Basics of Hydraulic Cylinders

Structure and Working Principle

Hydraulic cylinders are mechanical devices that play a crucial role in various industrial applications, including the maritime and shipbuilding industries. At their core, they are designed to convert hydraulic energy into mechanical force, enabling linear motion.

The basic structure of a hydraulic cylinder consists of several key components. The cylinder barrel, often made of high - strength steel, serves as the outer housing. It is designed to withstand high internal pressures generated by the hydraulic fluid. Inside the barrel, a piston is fitted. The piston divides the cylinder into two chambers, known as the rod - end chamber and the head - end chamber. The piston is connected to a piston rod, which extends out of the cylinder through a gland at one end. The gland contains seals that prevent the leakage of hydraulic fluid and also guide the piston rod during its movement.

The working principle of a hydraulic cylinder is based on Pascal's law, which states that pressure applied to an enclosed fluid is transmitted undiminished to every portion of the fluid and the walls of the containing vessel. A hydraulic pump is used to generate high - pressure hydraulic fluid. When the fluid is directed into one of the chambers of the hydraulic cylinder, it exerts pressure on the piston. For example, if the fluid enters the head - end chamber, the pressure forces the piston to move, pushing the piston rod outwards. This linear motion of the piston rod can be used to perform work, such as lifting a heavy load or opening a large valve. When the flow of hydraulic fluid is reversed, the piston moves in the opposite direction, retracting the piston rod.

Types of Hydraulic Cylinders Used in the Maritime and Shipbuilding Industries

In the maritime and shipbuilding sectors, several types of hydraulic cylinders are commonly employed, each with its own set of advantages and applications.

Piston - type Hydraulic Cylinders: These are among the most widely used in shipbuilding and shipping. Piston - type cylinders can be further classified into single - acting and double - acting cylinders. In a single - acting piston - type cylinder, hydraulic fluid is applied to only one side of the piston. The return motion of the piston is often achieved by an external force, such as a spring or the weight of the load being moved. For example, in some small - scale shipboard mechanisms like certain types of hatch - closing systems on smaller vessels, single - acting piston - type cylinders can be used. The advantage of single - acting cylinders is their relatively simple structure, which makes them cost - effective and easy to maintain.

Double - acting piston - type cylinders, on the other hand, have hydraulic fluid ports on both sides of the piston. This allows for precise control of the piston's movement in both the extending and retracting directions. They are extensively used in ship propulsion systems, such as in the operation of rudders. The ability to exert force in both directions enables smooth and accurate steering of the ship, which is essential for safe navigation in various sea conditions.

Plunger - type Hydraulic Cylinders: Plunger - type cylinders are another important type used in the maritime and shipbuilding industries. In a plunger - type cylinder, the piston is a simple rod - like plunger. These cylinders are often used when a large force is required over a relatively long stroke. For instance, in the construction of large ships, plunger - type cylinders can be found in the ship - building cranes used to lift heavy components into place. They are also used in some types of ship - docking systems, where they help in the precise positioning of the ship during the docking process. One of the main advantages of plunger - type cylinders is their simplicity in construction. Since the plunger does not require a close - fitting seal within the cylinder barrel (as opposed to a piston in a piston - type cylinder), they are less prone to issues related to seal wear and leakage over long - term use. However, they typically require a larger installation space compared to piston - type cylinders.

Applications of Hydraulic Cylinders in the Maritime Industry

Propulsion Systems

In ship propulsion systems, hydraulic cylinders are pivotal components. One of their primary functions is to adjust the angle and position of the propeller. For example, in some advanced ship designs, variable - pitch propellers are used, and hydraulic cylinders play a crucial role in changing the pitch of the propeller blades. By adjusting the pitch, the amount of water the propeller displaces per revolution can be controlled, which in turn affects the ship's thrust and, consequently, its speed.

Take a large - scale container ship as an example. When the ship needs to sail at different speeds depending on the sea conditions, the hydraulic cylinders connected to the propeller hub can precisely adjust the pitch of the propeller blades. In calm waters, a larger pitch can be set to maximize the propeller's efficiency and achieve higher speeds with less fuel consumption. When facing strong headwinds or rough seas, the pitch can be reduced to maintain better control and stability while still providing sufficient thrust.

Moreover, in some ships with azimuth thrusters, hydraulic cylinders are used to rotate the entire thruster unit. This allows for a more precise control of the ship's direction, as the thrust can be vectorially controlled in different directions. The ability to change the direction of thrust quickly and accurately using hydraulic cylinders improves the ship's maneuverability in tight spaces such as ports, enabling it to dock and undock more efficiently.

Steering Systems

Hydraulic cylinders are the heart of a ship's steering system. They are responsible for controlling the movement of the rudder, which is the primary device for changing the ship's direction. A typical ship steering system consists of a steering wheel or control console on the bridge, hydraulic pumps, valves, and the hydraulic cylinders connected to the rudder stock.

When the helmsman turns the steering wheel, a signal is sent to the hydraulic system. The hydraulic pumps then generate high - pressure hydraulic fluid, which is directed to the hydraulic cylinders attached to the rudder. As the hydraulic fluid enters the cylinders, it exerts force on the pistons, causing the cylinders to extend or retract. This movement of the cylinders rotates the rudder around the rudder stock, changing the angle of the rudder in the water.

The importance of hydraulic cylinders in the steering system cannot be overstated. They provide the necessary force to move the large and heavy rudder, which is essential for a ship's maneuverability. In high - speed vessels or large ships, the rudder can be extremely massive, and only the powerful force generated by hydraulic cylinders can ensure that the rudder responds quickly and accurately to the helmsman's commands. A well - functioning hydraulic cylinder - based steering system is crucial for safe navigation, especially in busy shipping lanes, during adverse weather conditions, or when avoiding collisions. If the hydraulic cylinders in the steering system fail, the ship's ability to change direction is severely compromised, putting the vessel and its crew at great risk.

Anchoring and Mooring Systems

Hydraulic cylinders are extensively used in a ship's anchoring and mooring systems to ensure the vessel's stability when at rest. In the anchoring system, hydraulic cylinders are mainly involved in two key operations: raising and lowering the anchor and tensioning the anchor chain.

When a ship needs to anchor, the hydraulic cylinders connected to the windlass (the device that winds and unwinds the anchor chain) are activated. The hydraulic cylinders provide the force required to lower the anchor to the seabed. As the anchor descends, the hydraulic system also controls the rate of descent to ensure a smooth and controlled operation. Once the anchor is on the seabed and the desired amount of anchor chain has been paid out, the hydraulic cylinders can be used to tension the anchor chain. By applying a certain amount of tension, the anchor is firmly set in place, preventing the ship from drifting due to wind, currents, or waves.

For example, in large oil tankers or cruise ships, which are very large and heavy, the anchors and anchor chains are also substantial. The hydraulic cylinders used in these vessels must be able to generate a significant amount of force to handle the weight of the anchor and chain and to provide the necessary tension for secure anchoring. In addition, in mooring systems, hydraulic cylinders are used in mooring winches. They help in adjusting the tension of the mooring lines that connect the ship to the dock. This ensures that the ship remains securely tied to the dock, even in the presence of tidal changes, wind, or small movements of the ship due to passing vessels.

Cargo Handling Equipment

Hydraulic cylinders are an integral part of various cargo - handling equipment on ships, such as cranes and winches, enabling the efficient loading and unloading of goods.

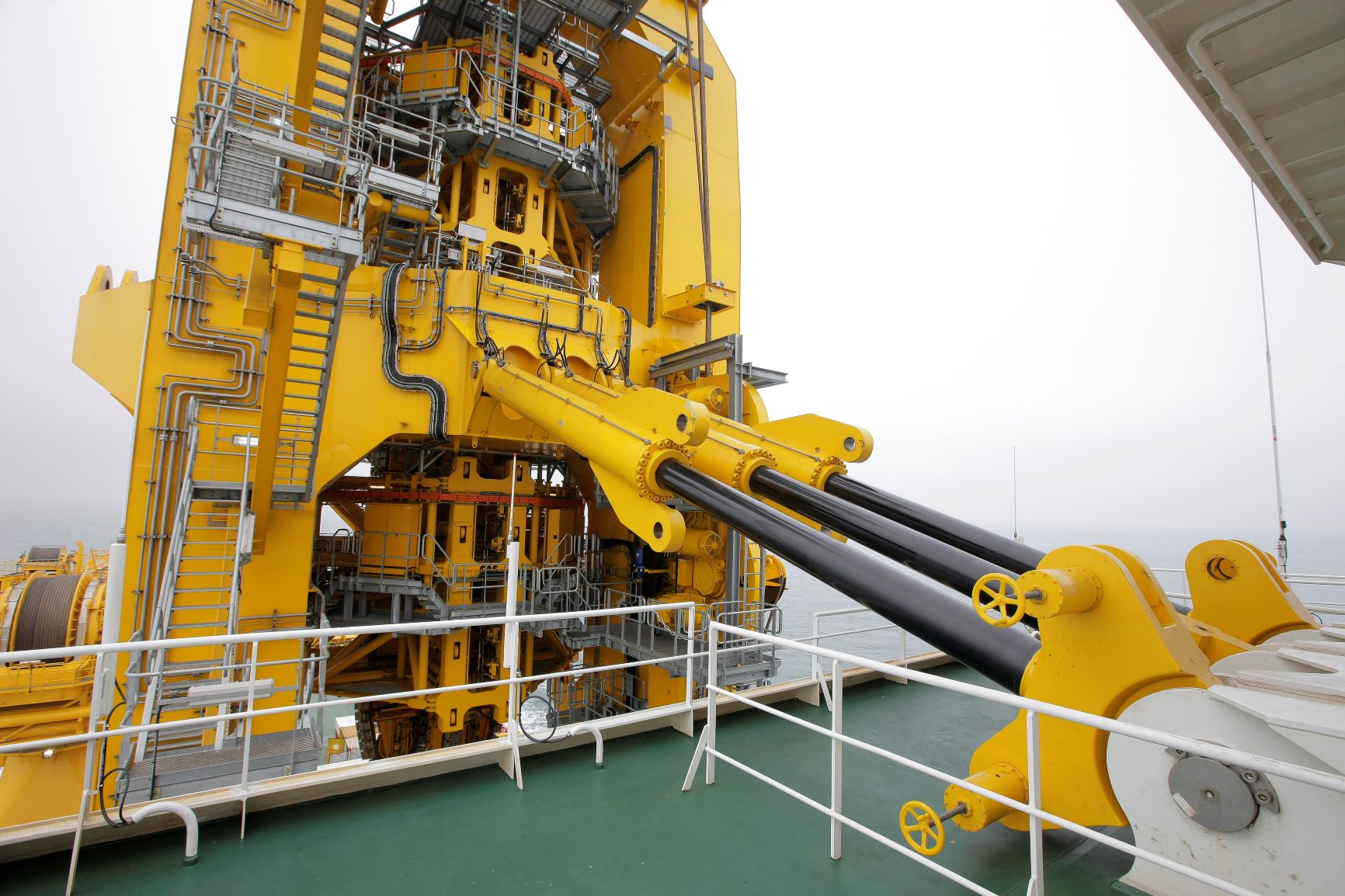

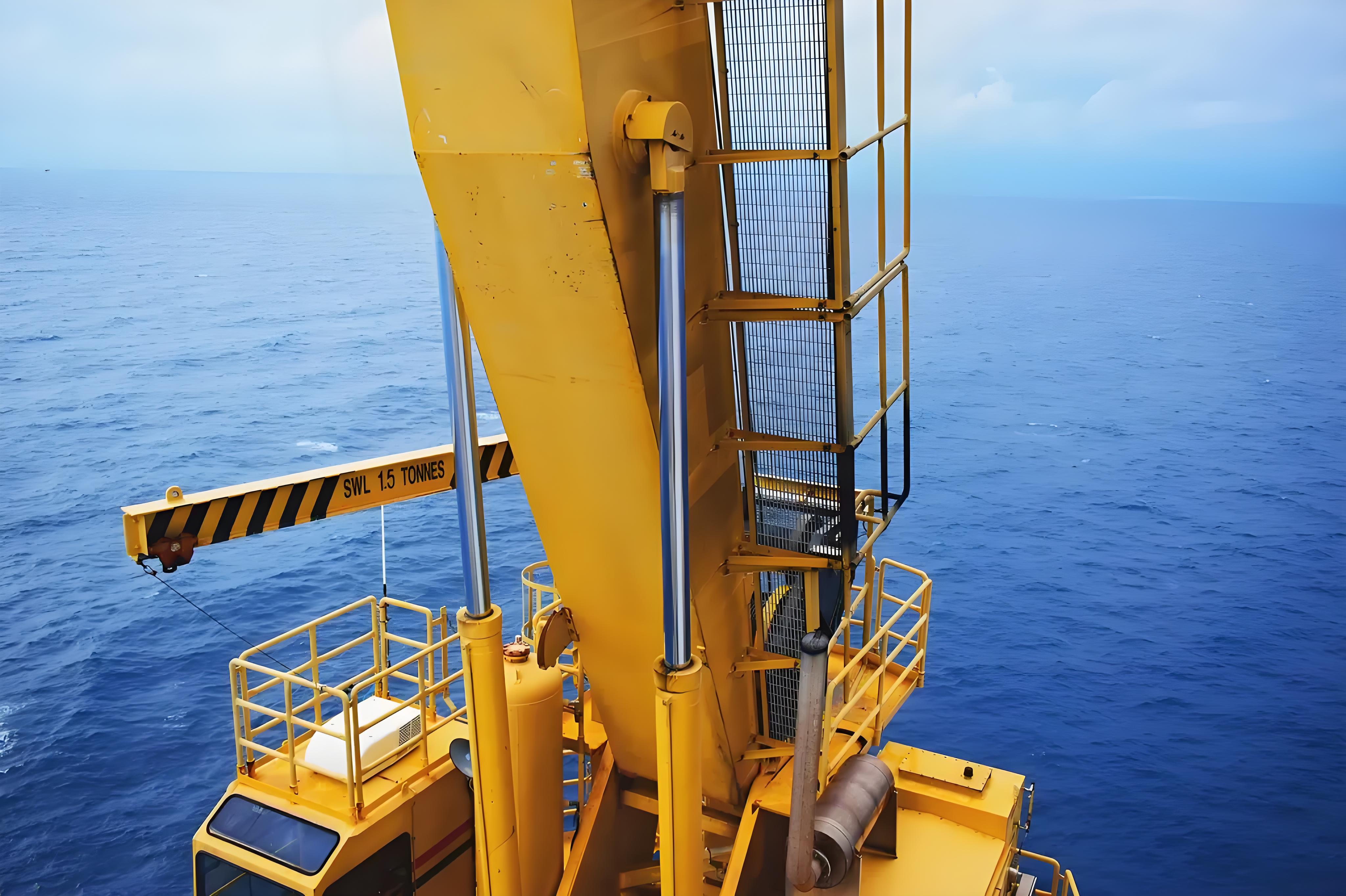

In ship - mounted cranes, hydraulic cylinders are used to control the movement of the crane boom, jib, and the lifting mechanism. For instance, a telescopic crane boom on a container ship is extended and retracted using hydraulic cylinders. When the crane needs to reach out to load or unload containers from a dock or another vessel, the hydraulic cylinders push or pull the sections of the boom, allowing it to extend to the required length. The hydraulic cylinders also control the elevation of the boom, adjusting the angle at which the crane can operate. This flexibility in movement provided by hydraulic cylinders enables the crane to precisely position the lifting hook over the cargo, facilitating the smooth transfer of containers.

Winches, which are used for pulling in ropes or cables to lift or move heavy loads, also rely on hydraulic cylinders. In a ship's cargo - handling operations, winches are often used to load and unload heavy machinery, bulk cargo, or large - sized containers. The hydraulic cylinders in the winch system provide the torque required to wind and unwind the ropes. They can also control the speed and tension of the ropes, ensuring that the cargo is lifted or lowered at a safe and controlled rate. This is crucial for preventing damage to the cargo, the ship, and the handling equipment itself. Overall, the use of hydraulic cylinders in cargo - handling equipment significantly improves the efficiency and safety of the loading and unloading processes, which are essential for the timely transportation of goods in the shipping industry.

Significance of Hydraulic Cylinders in Shipbuilding

Construction and Assembly

In the shipbuilding process, hydraulic cylinders are of great significance in the construction and assembly stages. Shipbuilding involves the joining of numerous large - scale hull segments, each of which can weigh several tons or even more. Hydraulic cylinders, often in the form of large - capacity lifting cylinders, are used in shipyard cranes. These cranes are essential for lifting and positioning these heavy hull segments accurately.

For example, in the construction of a large - scale cruise ship, the hull is built in sections. Hydraulic - cylinder - equipped cranes can lift the hull segments with precision, ensuring that they are aligned correctly for welding and assembly. The high - pressure hydraulic cylinders in these cranes can generate the necessary force to overcome the weight of the segments and provide smooth and stable lifting operations. This not only improves the construction efficiency but also enhances the accuracy of the assembly. Precise alignment of the hull segments is crucial for the structural integrity of the ship. If the segments are not assembled accurately, it can lead to issues such as uneven stress distribution in the hull, which may compromise the ship's safety and seaworthiness during its service life.

Equipment Installation

Hydraulic cylinders play a vital role in the installation of various equipment on ships. When installing large - scale equipment such as engines and propellers, precise positioning and alignment are essential. Hydraulic cylinders are used in specialized installation machinery to ensure that these heavy components are installed correctly.

In the case of engine installation, hydraulic cylinders are used to lift the engine into the engine room and position it accurately on the engine mounts. They can also be used to adjust the engine's orientation slightly to ensure a perfect fit with the drive shaft and other related components. For propeller installation, hydraulic cylinders are involved in the process of mounting the propeller onto the propeller shaft. They help in applying the necessary force to push the propeller onto the shaft with the correct amount of pre - load and alignment. This is important because an improperly installed propeller can cause vibrations, inefficiencies in propulsion, and even damage to the shaft and other components over time. In addition, for the installation of other equipment like large - capacity generators or complex navigation systems, hydraulic cylinders are used to lift, position, and fine - tune the equipment, ensuring that they are installed securely and operate optimally.

Special Requirements for Hydraulic Cylinders in the Maritime and Shipbuilding Environments

Corrosion Resistance

The maritime environment poses a significant challenge to hydraulic cylinders due to the high levels of salt and moisture present. Saltwater is highly corrosive, and the continuous exposure of hydraulic cylinders to this environment can lead to rapid degradation of their components. Moisture, in the form of humidity in the air and splashes of seawater, can also accelerate the corrosion process. If left unprotected, the metal surfaces of hydraulic cylinders can develop rust and pitting, which not only reduces their structural integrity but also affects their performance. For example, rust on the piston rod can cause damage to the seals, leading to fluid leakage and a loss of functionality.

To combat this, various corrosion - resistant materials and surface treatment techniques are employed. Stainless steel is a popular choice for hydraulic cylinder components. Its alloying elements, such as chromium and nickel, form a passive oxide layer on the surface, which protects the underlying metal from corrosion. Stainless steel cylinders are often used in critical applications where long - term corrosion resistance is essential. Additionally, chrome plating is a common surface treatment method. A layer of chromium is electroplated onto the metal surface of the hydraulic cylinder. Chrome has excellent corrosion - resistant properties and also provides a hard, smooth surface. This not only protects against corrosion but also reduces friction between moving parts, improving the efficiency and lifespan of the cylinder. Other surface treatment options include nickel plating, zinc plating, and the application of corrosion - resistant coatings, each with its own advantages and suitable applications in the maritime and shipbuilding contexts.

Shock and Vibration Resistance

Ships are constantly subjected to shock and vibration during their voyages. The impact of waves crashing against the hull can generate significant shock forces, while the operation of engines and other mechanical equipment on board creates continuous vibrations. These shock and vibration forces can have a detrimental effect on hydraulic cylinders. High - impact shocks can cause damage to the internal components of the cylinder, such as the piston, seals, and piston rod. Vibration, on the other hand, can lead to fatigue failure of the components over time. For instance, repeated vibrations can cause cracks to form in the cylinder barrel or the piston rod, eventually leading to component failure.

To enhance the shock and vibration resistance of hydraulic cylinders, several strategies are adopted in their design and construction. In terms of structure design, the use of reinforced cylinder barrels and pistons can improve the cylinder's ability to withstand shock loads. The internal components can be designed with shock - absorbing features, such as rubber - or spring - based shock absorbers. These absorbers can help to dampen the impact of sudden shocks, reducing the stress on the components. Regarding material selection, high - strength and fatigue - resistant materials are preferred. For example, alloy steels with good shock - resistance properties can be used for the construction of the cylinder barrel and piston rod. These materials are better able to withstand the repeated stress cycles caused by vibration, reducing the likelihood of fatigue failure. Additionally, proper mounting and fastening techniques are crucial. Hydraulic cylinders are often mounted using shock - absorbing mounts and vibration - isolating pads. These help to isolate the cylinder from the source of vibration, minimizing the transfer of vibration forces to the cylinder components.

Compactness and Lightweight Design

Space on ships is a precious commodity, especially in modern vessels where every cubic meter needs to be utilized efficiently. This places strict requirements on the compactness and lightweight design of hydraulic cylinders. Large and heavy hydraulic cylinders not only take up valuable space but also add unnecessary weight to the ship, which can impact its fuel efficiency and overall performance. For example, in a small - to - medium - sized ship, the installation of bulky hydraulic cylinders in the engine room or cargo - handling areas can limit the available space for other equipment and operations.

To meet these requirements, high - strength alloy materials are increasingly being used. Aluminum alloys, for instance, are popular due to their high strength - to - weight ratio. They can provide the necessary strength for the hydraulic cylinder's operation while significantly reducing its weight compared to traditional steel materials. In addition, advanced design methods are employed. Computational fluid dynamics (CFD) and finite - element analysis (FEA) are used to optimize the internal and external structures of hydraulic cylinders. These techniques allow designers to analyze the stress distribution and fluid flow within the cylinder, enabling them to make design modifications that reduce the overall size and weight without sacrificing performance. Modular and integrated designs are also becoming more common. By integrating multiple functions into a single, compact unit or using modular components that can be easily assembled and disassembled, the overall footprint of the hydraulic cylinder can be reduced, making it more suitable for installation in the confined spaces on ships.

Reliability and Durability

Ships often have long - distance voyages that can last for weeks or even months. During this time, the hydraulic cylinders need to operate continuously and reliably. Moreover, performing maintenance on hydraulic cylinders at sea is extremely difficult and costly. If a hydraulic cylinder fails during a voyage, it can disrupt the ship's operations, leading to delays, increased costs, and potential safety risks. For example, a failure in the steering - system hydraulic cylinder can make it difficult to control the ship, endangering the vessel and its crew.

To ensure high reliability and durability, hydraulic cylinders in the maritime and shipbuilding industries are subject to strict quality control and testing standards. During the manufacturing process, every component is carefully inspected for defects and dimensional accuracy. Quality - control measures include non - destructive testing methods such as ultrasonic testing and magnetic particle inspection to detect any internal or surface flaws in the metal components. Once the hydraulic cylinder is assembled, it undergoes rigorous performance testing. This includes pressure - testing to ensure that the cylinder can withstand the maximum operating pressure without leakage or failure, as well as endurance testing to simulate long - term operation. The cylinders are tested under various conditions that mimic the harsh environment of the sea, including temperature variations, humidity, and mechanical stress. Only hydraulic cylinders that pass these strict tests are considered suitable for use in ships, ensuring that they can operate reliably for extended periods and contribute to the safe and efficient operation of the vessel.

Technological Developments and Future Trends

Smart Hydraulic Cylinders

In recent years, the integration of intelligent technologies into hydraulic cylinders has been a significant development trend. Smart hydraulic cylinders are equipped with various sensors, such as pressure sensors, displacement sensors, and temperature sensors. These sensors can continuously monitor the operating parameters of the hydraulic cylinder in real - time. For example, a pressure sensor can detect the internal pressure of the cylinder, while a displacement sensor can accurately measure the position of the piston rod.

The data collected by these sensors is then transmitted to a sophisticated control system. This control system can analyze the data and make intelligent decisions. In the shipping industry, for instance, if a ship's steering - system hydraulic cylinder is equipped with smart technology, the control system can automatically adjust the hydraulic pressure based on the ship's speed, the sea conditions, and the steering angle commands from the helmsman. This ensures that the rudder responds precisely and smoothly, enhancing the ship's maneuverability.

Moreover, smart hydraulic cylinders enable remote monitoring and fault diagnosis. Ship operators can monitor the status of hydraulic cylinders on their ships from a shore - based control center. If a fault is detected, such as abnormal pressure or excessive wear of seals, the system can send out an alarm in a timely manner. This allows maintenance personnel to take proactive measures, reducing the risk of sudden failures during voyages and minimizing downtime. The ability to perform remote monitoring and fault diagnosis also improves the overall efficiency of ship maintenance, as maintenance resources can be allocated more effectively.

New Materials and Manufacturing Processes

The application of new materials in hydraulic cylinder manufacturing is revolutionizing the industry. Composites, such as carbon - fiber - reinforced polymers (CFRP), are increasingly being used. CFRP offers several advantages over traditional metal materials. It has a high strength - to - weight ratio, which is particularly beneficial in the maritime and shipbuilding industries where weight reduction is crucial. For example, in ship - mounted cranes, using CFRP - made hydraulic cylinders can significantly reduce the weight of the crane's moving parts. This not only improves the energy efficiency of the crane but also allows for a larger lifting capacity with the same power source. Additionally, composites have excellent corrosion - resistance properties, making them well - suited for the harsh maritime environment. They can withstand the corrosive effects of saltwater and humidity for extended periods without significant degradation, thus increasing the lifespan of the hydraulic cylinders.

Advanced manufacturing processes, such as 3D printing, are also making their mark in hydraulic cylinder production. 3D printing, also known as additive manufacturing, allows for the creation of complex geometries that are difficult or impossible to achieve with traditional manufacturing methods. In the production of hydraulic cylinders, 3D printing can be used to manufacture components with internal channels and cavities that are optimized for fluid flow. This can improve the efficiency of the hydraulic cylinder by reducing pressure losses and enhancing the overall performance. Moreover, 3D printing enables rapid prototyping and on - demand production. Shipbuilders can quickly produce replacement parts for hydraulic cylinders in case of damage or wear, reducing the waiting time for parts and minimizing production disruptions. The ability to produce customized components through 3D printing also allows for better tailoring of hydraulic cylinders to specific ship designs and operational requirements.

Energy - Efficiency and Environmental Friendliness

With the growing stringency of environmental regulations globally, energy - efficiency and environmental friendliness have become key focus areas for hydraulic cylinder development. In the shipping and shipbuilding industries, where energy consumption and emissions are significant concerns, hydraulic cylinders are evolving to meet these challenges.

Manufacturers are developing hydraulic cylinders with improved energy - efficiency features. For example, new designs are being created to reduce internal leakage, which is a major source of energy loss in traditional hydraulic cylinders. By using advanced sealing technologies and precision - engineered components, the amount of hydraulic fluid that leaks past the piston and seals can be minimized. This ensures that more of the hydraulic energy is effectively utilized for the intended work, such as moving the rudder or operating cargo - handling equipment, rather than being wasted due to leakage. Additionally, some hydraulic cylinders are being designed with variable - displacement pumps. These pumps can adjust the flow rate of the hydraulic fluid according to the actual load requirements. When the load is low, the pump reduces the flow rate, consuming less energy. When the load increases, the pump automatically increases the flow rate to provide the necessary power. This variable - displacement technology can significantly reduce the overall energy consumption of the hydraulic system, making it more environmentally friendly and cost - effective.

In terms of environmental friendliness, efforts are also being made to reduce the use of harmful substances in hydraulic cylinder production and operation. For example, biodegradable hydraulic fluids are being developed and used in some applications. These fluids are less harmful to the marine environment in case of leakage, reducing the potential for pollution. Moreover, the design of hydraulic cylinders is being optimized to make them easier to recycle at the end of their service life. By using materials that are compatible with recycling processes and designing components that can be easily disassembled, the environmental impact of hydraulic cylinders throughout their lifecycle can be minimized. This is in line with the broader trend towards sustainable development in the maritime and shipbuilding industries, where reducing the carbon footprint and environmental impact is becoming increasingly important.

Conclusion

In conclusion, hydraulic cylinders are the linchpins that hold together the complex machinery of the shipping and shipbuilding industries. Their diverse applications, from powering propulsion and steering systems in ships to enabling precise construction and equipment installation in shipyards, are essential for the seamless operation and development of these industries.

As we look to the future, the technological advancements in hydraulic cylinder technology, such as the development of smart cylinders, the application of new materials and manufacturing processes, and the focus on energy - efficiency and environmental friendliness, are set to revolutionize the shipping and shipbuilding sectors. These advancements will not only enhance the performance, reliability, and sustainability of ships and ship - building operations but also drive the industries forward in an increasingly competitive and environmentally conscious global market. The continued evolution of hydraulic cylinders will undoubtedly play a crucial role in shaping the future of the maritime world, ensuring the safe, efficient, and sustainable transportation of goods across the oceans for generations to come.
