Introduction

Hydraulic cylinders play a pivotal role in a wide range of industrial applications, serving as essential components in machinery and equipment across various sectors. They are widely used in construction machinery like excavators and loaders, manufacturing equipment such as presses and injection molding machines, and even in aerospace and automotive industries. The functionality of hydraulic cylinders lies in their ability to convert hydraulic energy into mechanical force, enabling linear motion with high precision and substantial power output. This force is crucial for tasks such as lifting heavy loads, precise positioning, and exerting high pressures in manufacturing processes.

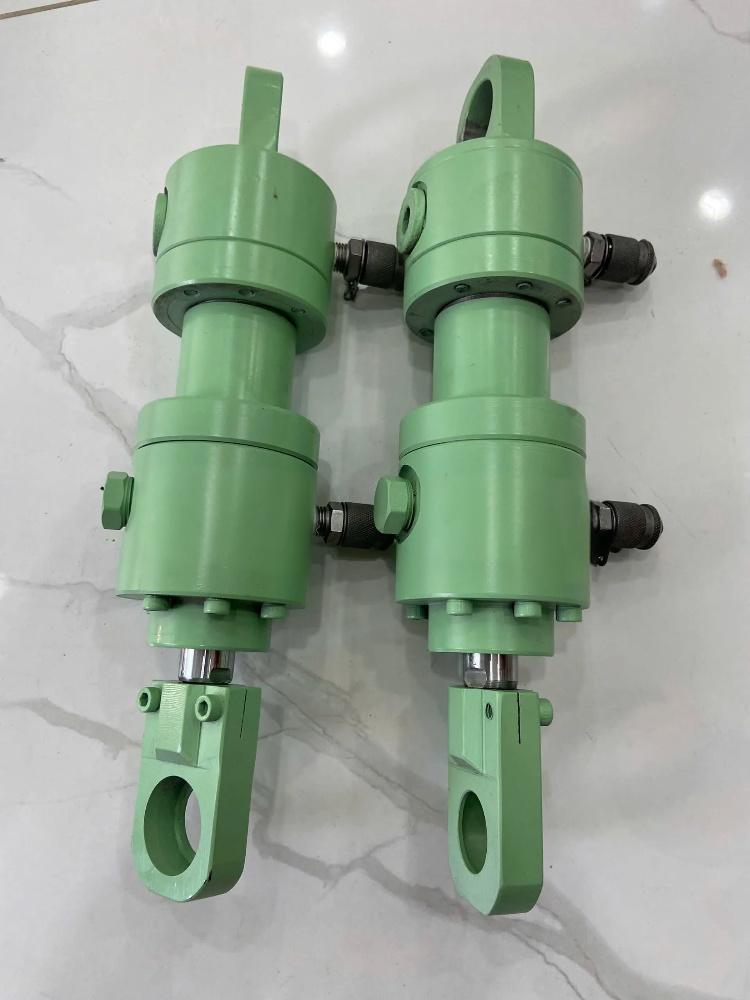

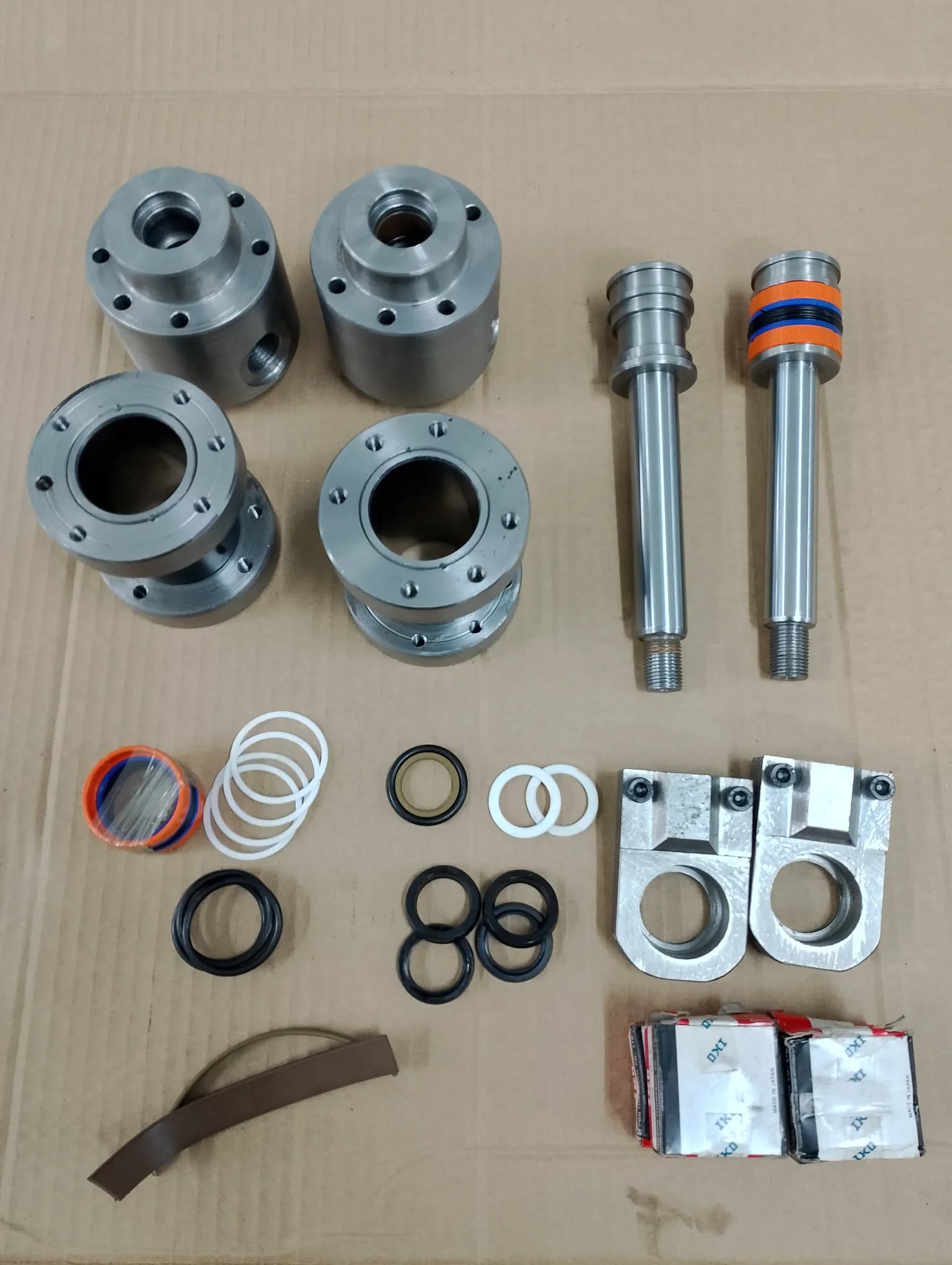

To understand how hydraulic cylinders operate effectively and to ensure their optimal performance, it is essential to be familiar with their main components. Each part contributes uniquely to the overall function of the hydraulic cylinder, and any malfunction or wear in these components can lead to reduced efficiency or complete failure of the system. In the following sections, we will explore the main components of hydraulic cylinders in detail, including the cylinder barrel, piston, piston rod, seals, end caps, and others.

Piston: The Core Mover

The piston is the core moving component within a hydraulic cylinder, playing a crucial role in converting hydraulic pressure into mechanical motion. It is located inside the cylinder barrel and moves back and forth along the axis of the cylinder in response to the pressure of the hydraulic fluid.

Structure and Design

Typically, a piston consists of a piston head and a piston rod connection part. The piston head is the part that directly interacts with the hydraulic fluid and is designed to withstand high pressures. It usually has a circular cross - section to fit snugly inside the cylinder barrel. The piston rod connection part is used to attach the piston to the piston rod, ensuring the smooth transfer of force.

The design of the piston takes into account several factors. For example, the diameter of the piston is a critical parameter. A larger piston diameter can generate greater force output under the same hydraulic pressure because the force exerted by the piston is calculated by multiplying the hydraulic pressure by the cross-sectional area of the piston (F = P x A), where F is the force, P is the pressure, and A=πr², r is the radius of the piston). However, a larger piston also requires more hydraulic fluid to move, which may affect the speed of the piston movement and the overall efficiency of the system.

Materials

Common materials for pistons include cast iron and steel. Cast iron is often chosen for its good wear-resistance, relatively low cost, and ease of casting into complex shapes. It can withstand the abrasive forces generated during the piston's movement within the cylinder barrel. Steel pistons, on the other hand, offer high strength and excellent mechanical properties. They are suitable for applications where the piston needs to endure high-pressure and high-load conditions, such as in heavy-duty construction machinery or industrial presses.

Types of Pistons

There are different types of pistons, with the two most common being single-acting and double-acting pistons:

The proper selection and design of the piston are essential for the performance of the hydraulic cylinder. A well-designed piston ensures efficient energy conversion, minimal internal leakage, and smooth, reliable operation of the entire hydraulic system.

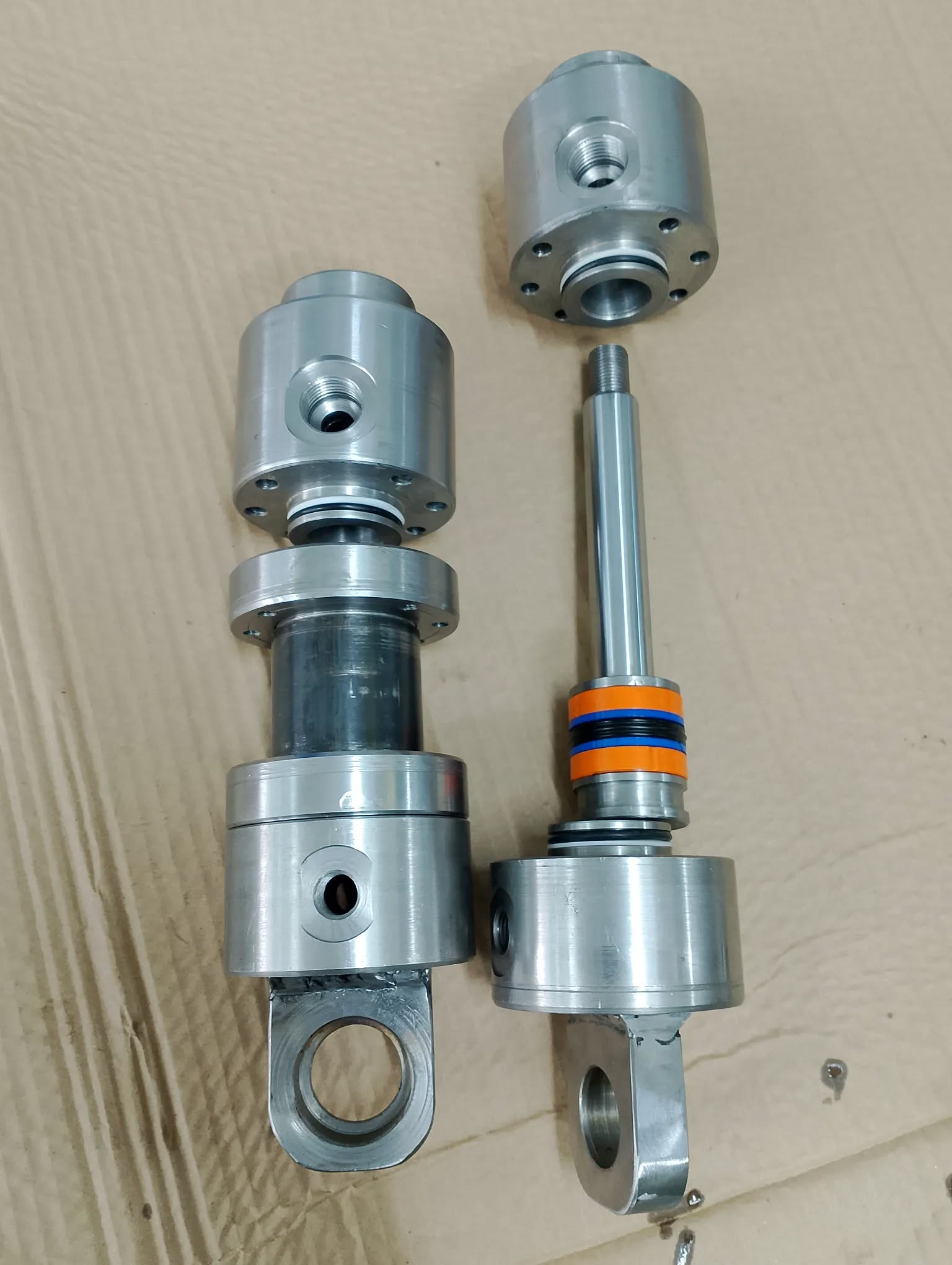

Piston Rod: Transmitting the Force

The piston rod is another crucial component in a hydraulic cylinder, as it connects the piston to the external load and transmits the force generated by the piston. It plays a vital role in ensuring the linear motion of the hydraulic cylinder and transferring the mechanical energy to perform useful work.

Connection and Force Transmission

One end of the piston rod is firmly attached to the piston, and the other end is connected to the component that needs to be actuated, such as a work implement in construction machinery or a moving part in manufacturing equipment. When the piston moves under the pressure of the hydraulic fluid, the piston rod moves along with it, and the force exerted on the piston is directly transferred to the external load through the piston rod. This transfer of force is essential for the hydraulic cylinder to perform tasks like lifting heavy objects, pushing or pulling components, and providing precise linear motion in various industrial applications. For example, in a forklift, the piston rod of the hydraulic cylinder is connected to the lift carriage. As the piston inside the cylinder moves due to hydraulic pressure, the piston rod extends or retracts, thereby raising or lowering the lift carriage to handle loads.

Material Characteristics

The material of the piston rod must possess specific characteristics to withstand the demanding conditions it encounters during operation. High-strength steel is commonly used for piston rods. Steel offers excellent tensile strength, which allows the piston rod to endure the high forces transmitted from the piston without deforming or breaking. For instance, alloy steels such as 42CrMo are frequently chosen. These steels contain alloying elements like chromium (Cr) and molybdenum (Mo), which enhance their strength, hardness, and wear-resistance. The high strength of the material is crucial when the hydraulic cylinder is operating under high-pressure conditions or when it needs to handle heavy loads.

In addition to strength, the piston rod material also needs to have good corrosion resistance. Hydraulic systems often operate in environments where they are exposed to moisture, dust, and sometimes corrosive substances. To prevent rust and corrosion, which could weaken the piston rod over time, materials with inherent corrosion-resistant properties or those treated with anti-corrosion coatings are used. Stainless steel, although more expensive than regular steel, is an option in applications where high-level corrosion resistance is required, such as in the marine industry or in food and pharmaceutical processing equipment, where any contamination from a corroded piston rod could be a serious issue.

Processing Technology

The processing technology of the piston rod has a significant impact on its performance. Precision machining is essential to ensure that the piston rod has the correct dimensions and a high-quality surface finish. The rod is typically machined to a very precise diameter and straightness. Any deviation in these parameters can lead to problems such as uneven wear of the seals, increased friction, and reduced efficiency of the hydraulic cylinder. For example, if the piston rod is not perfectly straight, it may cause the seals to be damaged prematurely as the rod moves in and out of the cylinder, resulting in hydraulic fluid leakage.

Surface treatment is another crucial aspect of piston rod processing. A common surface treatment method is hard chrome plating. Chrome plating not only improves the wear-resistance of the piston rod but also enhances its corrosion resistance. The hard chrome layer provides a smooth and durable surface, reducing friction between the piston rod and the seals and guiding elements inside the cylinder. Other surface treatment techniques like nitriding can also be used to increase the surface hardness of the piston rod, improving its resistance to abrasion and fatigue.

In summary, the piston rod, with its role in force transmission, and its specific material and processing requirements, is an integral part of the hydraulic cylinder, and its proper design and manufacture are essential for the reliable and efficient operation of the entire hydraulic system.

Cylinder Barrel: The Protective Chamber

The cylinder barrel is the main body of a hydraulic cylinder, serving as a protective chamber that houses the hydraulic oil and provides a space for the piston to move. It plays a fundamental role in the proper functioning of the hydraulic cylinder.

Function as a Pressure-Bearing and Containment Component

The primary function of the cylinder barrel is to contain the hydraulic fluid under pressure. It must be able to withstand high internal pressures without deforming or rupturing. In a hydraulic system, the pressure of the hydraulic fluid can be extremely high, especially in applications such as heavy - duty industrial machinery or high - pressure hydraulic presses. For example, in a large - scale hydraulic press used in metal forging, the cylinder barrel may need to withstand pressures of several hundred bar. The cylinder barrel also provides a smooth inner surface for the piston to move along. This smooth surface is crucial for minimizing friction between the piston and the barrel, ensuring that the piston can move freely and efficiently. If the inner surface of the cylinder barrel is rough or has imperfections, it can cause excessive wear on the piston seals, leading to leakage and reduced performance of the hydraulic cylinder.

Material Selection

The material of the cylinder barrel is carefully chosen based on the operating conditions of the hydraulic cylinder. Common materials for cylinder barrels include seamless steel tubes, which are widely used due to their high strength and good mechanical properties. For general-purpose hydraulic cylinders in industrial applications, carbon steel seamless tubes such as 20# steel or 45# steel are often selected. 20# steel has relatively good plasticity and weldability, making it suitable for some applications where the pressure is not extremely high. 45# steel, on the other hand, offers higher strength and hardness, and is more suitable for medium-to high-pressure hydraulic cylinders.

In applications where corrosion resistance is required, such as in the marine industry or in chemical processing plants, stainless-steel cylinder barrels are used. Stainless steel, like 304 or 316 grades, can resist the corrosive effects of moisture, saltwater, and various chemical substances. This ensures the long-term durability of the cylinder barrel in harsh environments.

Manufacturing Precision

High manufacturing precision is essential for the cylinder barrel. The inner diameter of the cylinder barrel must be machined to a very precise tolerance. For general-precision hydraulic cylinders, the inner-diameter tolerance is typically controlled within a certain range according to international standards such as ISO 8015. For example, for a cylinder barrel with an inner diameter in the range of 50-100 mm, the tolerance may be set as H8. This precise control of the inner - diameter ensures a proper fit between the piston and the cylinder barrel. If the inner-diameter tolerance is too large, it can lead to excessive clearance between the piston and the barrel, causing internal leakage of hydraulic fluid. Internal leakage reduces the efficiency of the hydraulic cylinder as the pressure is not effectively transmitted to move the piston, and it can also cause the hydraulic system to overheat due to the energy loss from the leakage.

The cylinder barrel also needs to have high-level geometric accuracy, such as a low level of cylindricity error. The cylindricity of the cylinder barrel affects the uniform distribution of pressure on the piston during its movement. A high-quality cylinder barrel should have a cylindricity error that is kept to a minimum, usually within a fraction of the inner-diameter tolerance. For example, in high-performance hydraulic cylinders used in aerospace or precision manufacturing equipment, the cylindricity error may be required to be within 0.01 mm or even less, ensuring smooth and accurate piston movement throughout the entire stroke of the cylinder.

End Caps: Sealing and Supporting

End caps are installed at both ends of the hydraulic cylinder, playing a crucial role in enclosing the cylinder, securing other components, and maintaining a proper seal.

Function in Sealing and Component Fixing

The end caps have two main functions. Firstly, they seal the cylinder barrel at both ends, preventing the leakage of hydraulic fluid. A tight seal is essential to maintain the hydraulic pressure within the cylinder, ensuring efficient operation of the hydraulic system. Any leakage from the end caps can lead to a loss of pressure, reduced force output, and potential system failures. For example, in a hydraulic press, if the end caps do not seal properly, the hydraulic fluid may leak, causing the press to lose the ability to generate sufficient force to shape the workpiece.

Secondly, end caps are used to fix other components in place. They hold the piston rod in alignment and provide support for the piston as it moves within the cylinder. They also house various sealing elements and, in some cases, additional components such as ports for the entry and exit of hydraulic fluid. In a typical hydraulic cylinder used in construction equipment, the end caps hold the piston rod in position, allowing it to extend and retract smoothly while maintaining the integrity of the hydraulic system.

Types of End Caps and Their Applications

There are different types of end caps, with the most common being flanged end caps and threaded end caps:

In summary, end caps are vital components in hydraulic cylinders, with their sealing and supporting functions being essential for the proper operation and longevity of the hydraulic system. The choice of end cap type depends on the specific requirements of the application, including factors such as pressure levels, ease of maintenance, and the need for a strong connection.

Seals: Ensuring Leak-proof Operation

Seals are vital components in hydraulic cylinders, playing a crucial role in maintaining the integrity of the hydraulic system by preventing hydraulic fluid leakage and ensuring consistent pressure.

Importance in Preventing Leakage and Maintaining Pressure

Hydraulic cylinders operate under high - pressure conditions, and any leakage of hydraulic fluid can lead to significant problems. Leakage not only results in the loss of hydraulic fluid, which can be costly to replace, but also reduces the efficiency of the hydraulic system. For example, in a construction excavator, if there is a seal failure in the hydraulic cylinder of the boom, hydraulic fluid may leak, causing the boom to lose its lifting power or move erratically. This can disrupt the construction work and potentially pose safety risks. Seals also prevent air from entering the hydraulic system. Air in the hydraulic fluid can cause cavitation, which is the formation and collapse of vapor bubbles in the fluid. Cavitation can damage the internal components of the hydraulic cylinder, such as the piston and cylinder barrel, and reduce the lifespan of the system.

Types, Materials, and Working Principles of Common Seals

Guide Rings and Bushings: Smooth Movement

Guide rings and bushings are essential components in hydraulic cylinders, playing a significant role in ensuring smooth movement and reducing friction and wear.

Function in Guiding and Reducing Friction

Guide rings, also known as support rings, are installed on the piston or piston rod. Their primary function is to guide the movement of the piston or piston rod within the cylinder barrel. They prevent the piston or piston rod from coming into direct contact with the cylinder barrel during movement, which helps to reduce friction and wear between these components. For example, in a hydraulic cylinder used in a manufacturing press, the guide rings on the piston ensure that the piston moves smoothly along the axis of the cylinder barrel, maintaining accurate alignment and minimizing the risk of damage to the cylinder barrel due to misalignment or excessive friction.

Bushings, on the other hand, are typically used to support and guide the piston rod as it extends and retracts from the cylinder. They provide a smooth surface for the piston rod to slide on, reducing friction and preventing lateral movement or wobbling of the piston rod. This is crucial for maintaining the stability and precision of the hydraulic cylinder's operation. In a hydraulic system for a robotic arm, the bushings support the piston rods of the hydraulic cylinders, allowing the arm to move with high precision and repeatability.

Material and Installation Location Selection

The materials used for guide rings and bushings are carefully chosen based on the operating conditions of the hydraulic cylinder. Common materials for guide rings include polyoxymethylene (POM), which offers good wear-resistance, low friction coefficient, and self-lubricating properties. POM guide rings can withstand moderate loads and are suitable for a wide range of applications. In some high-load or high-temperature applications, materials like phenolic resin-based composites or reinforced plastics may be used. These materials have higher strength and better heat resistance, enabling them to perform well under more demanding conditions.

Bushings can be made from various materials, such as bronze, brass, or polymer-based materials. Bronze bushings are popular due to their excellent wear-resistance, high load-bearing capacity, and good corrosion resistance. They are often used in applications where the hydraulic cylinder is subjected to heavy loads and harsh operating environments. Polymer-based bushings, like those made from high-density polyethylene (HDPE) or polyurethane, are lightweight, have low friction, and are suitable for applications where weight reduction and cost-effectiveness are important factors.

The installation location of guide rings and bushings is also critical. Guide rings are usually installed in grooves on the piston or piston rod, ensuring a proper fit and alignment. The position of the guide rings on the piston affects the distribution of forces during movement and the overall stability of the piston. Bushings are installed at the end caps of the hydraulic cylinder or in special bearing housings to support the piston rod. The alignment and tightness of the bushing installation are crucial for preventing misalignment of the piston rod, which could lead to increased wear and reduced performance of the hydraulic cylinder.

Conclusion

In conclusion, the main components of a hydraulic cylinder, including the piston, piston rod, cylinder barrel, end caps, seals, guide rings, and bushings, work in harmony to enable the efficient conversion of hydraulic energy into mechanical motion. The piston, as the core mover, converts hydraulic pressure into linear movement, while the piston rod transmits this force to the external load. The cylinder barrel provides a stable and pressure - resistant chamber for the piston's movement, and the end caps ensure proper sealing and component fixation. Seals play a crucial role in preventing leakage and maintaining the integrity of the hydraulic system, and guide rings and bushings contribute to smooth and precise operation by reducing friction and guiding the movement of components.

The correct selection and maintenance of these components are of utmost importance. Choosing components with the right materials, dimensions, and specifications according to the specific operating conditions of the hydraulic cylinder can ensure optimal performance. Regular maintenance, such as checking for wear and tear, replacing seals at appropriate intervals, and ensuring proper lubrication, can significantly extend the lifespan of the hydraulic cylinder and prevent costly breakdowns.

Looking ahead, the technology of hydraulic cylinders is likely to continue evolving. With the development of new materials, such as high - strength and corrosion - resistant alloys, as well as advanced manufacturing techniques, hydraulic cylinders will become more efficient, durable, and reliable. The integration of smart sensors and control systems into hydraulic cylinders may also be a future trend, enabling real - time monitoring of performance, predictive maintenance, and more precise control, which will further expand their applications in various industries.
