Production Equipment and Machinery Required for Hydraulic Cylinder Manufacturing
Date : 2026-01-19 10:16:36Pageviews : 53

Omicron CNC 8060

Hydraulic cylinders are critical components widely used in engineering machinery, industrial automation, aerospace, and other fields. Their manufacturing involves multiple precision processes, each relying on specialized equipment to ensure dimensional accuracy, structural integrity, and performance stability. This article systematically elaborates on the core production equipment and machinery required for hydraulic cylinder manufacturing, combining practical production processes and technical standards.

1. Raw Material Preparation and Cutting Equipment

The main raw materials for hydraulic cylinders include seamless steel pipes (for cylinder barrels), carbon steel or alloy steel bars (for pistons and piston rods), and high-strength castings (for end caps). The initial processing stage requires equipment to cut and shape these raw materials:
  • Band Sawing Machines: Used for rough cutting of seamless steel pipes and steel bars. High-precision band sawing machines (e.g., horizontal double-column models) ensure straight cutting surfaces with a perpendicularity error ≤0.1mm/m, avoiding material waste caused by irregular cuts. They are equipped with variable-speed feeding systems to adapt to different material thicknesses (ranging from 20mm to 300mm in diameter).
  • Plasma Cutting Machines: Suitable for cutting thick-walled steel pipes or special alloy materials. CNC plasma cutting machines offer high cutting speed (up to 5m/min) and precision, with a cutting tolerance of ±0.5mm. They use inert gas protection to prevent oxidation of the cutting surface, ensuring the subsequent welding quality.
  • Pipe End Beveling Machines: Essential for processing the welding bevels of cylinder barrels. Beveling machines (either internal or external bevel types) can process bevel angles of 30°-45° and ensure uniform bevel width, which is crucial for achieving full penetration in later welding processes.

2. Machining Equipment for Core Components

Precision machining is the key to ensuring the performance of hydraulic cylinders, as core components such as cylinder barrels, piston rods, and pistons require strict dimensional tolerance and surface quality:

2.1 Cylinder Barrel Machining Equipment

  • CNC Lathes: Used for turning the outer diameter, inner diameter, and end faces of cylinder barrels. High-speed CNC lathes with servo control systems achieve dimensional tolerances of IT7-IT8 and surface roughness Ra ≤1.6μm. They can process cylinder barrels with lengths up to 6000mm and diameters ranging from 50mm to 500mm.

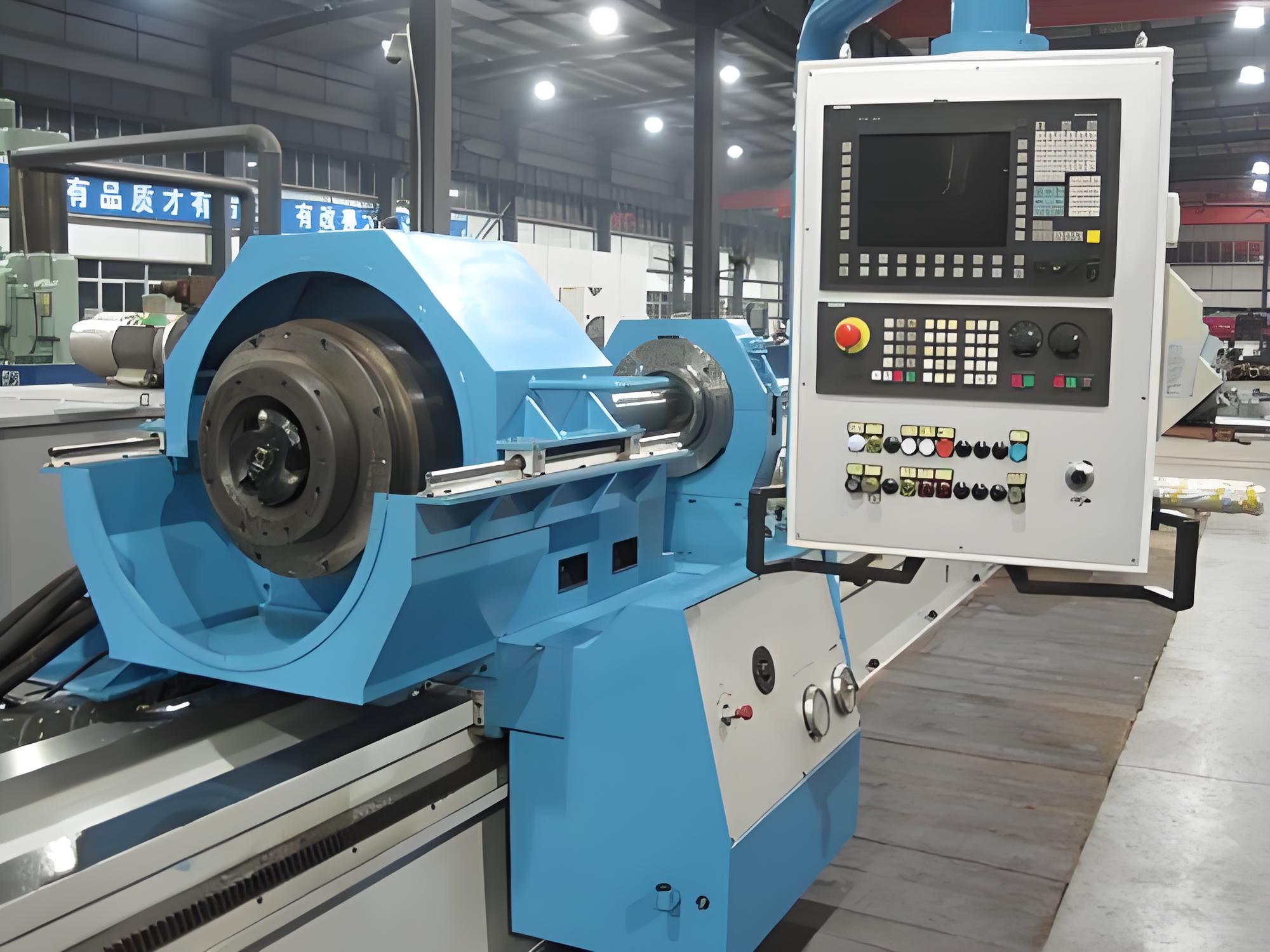

  • Honing Machines: Critical for finishing the inner surface of cylinder barrels. Vertical or horizontal honing machines use diamond or cubic boron nitride (CBN) honing stones to achieve surface roughness Ra ≤0.4μm and roundness error ≤0.005mm. The honing process also improves the surface hardness and wear resistance of the cylinder barrel, ensuring tight sealing with the piston.

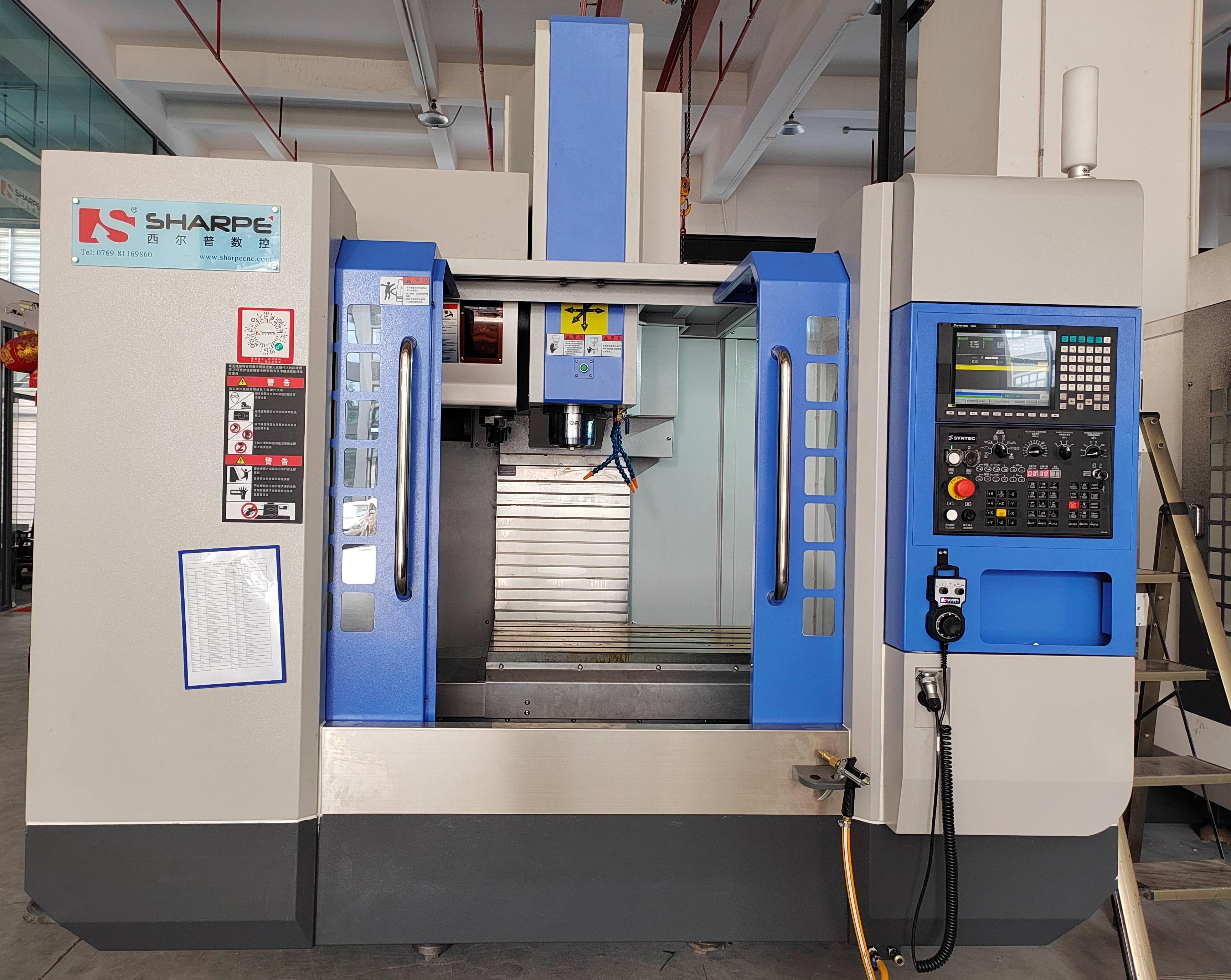

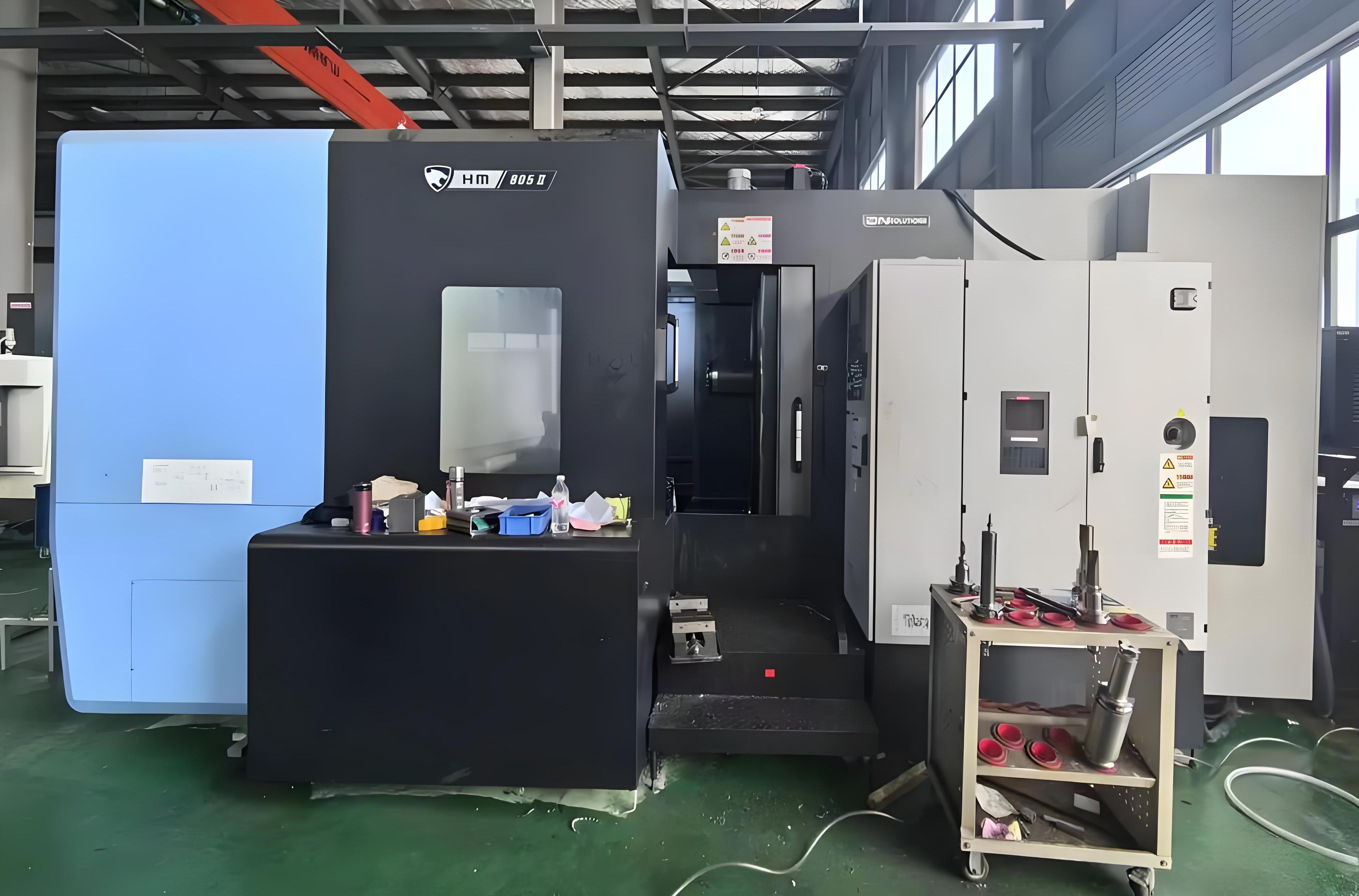

  • CNC Milling Machines: Used for machining mounting flanges, oil ports, and other structural features on the cylinder barrel. Five-axis CNC milling machines enable multi-angle processing, improving production efficiency and machining accuracy.

2.2 Piston and Piston Rod Machining Equipment

  • CNC Turning Centers: Integrate turning, milling, and drilling functions, suitable for complex piston structures. They can process piston grooves, pin holes, and other features in one setup, reducing clamping errors and ensuring positional accuracy (e.g., coaxiality of pin holes ≤0.01mm).
  • Grinding Machines: Including external cylindrical grinding machines and centerless grinding machines. Used for grinding the outer diameter of piston rods, achieving dimensional tolerance IT6 and surface roughness Ra ≤0.2μm. Some high-precision grinding machines are equipped with online measurement systems to real-time monitor and adjust machining parameters.
  • Thread Rolling Machines: For processing external threads on piston rods or end caps. Cold thread rolling machines improve thread strength by 20%-30% compared to cutting processes, while ensuring thread precision and surface finish.


3. Welding Equipment

Hydraulic cylinders require welding for connections such as cylinder barrels and end caps, piston rods and pistons. Welding quality directly affects the structural strength and sealing performance:
  • MIG/MAG Welding Machines: Gas metal arc welding (MIG/MAG) is widely used for welding carbon steel and low-alloy steel components. CNC automatic welding machines with swing welding heads ensure uniform weld formation and penetration. The welding process uses argon-carbon dioxide mixed gas protection to prevent weld oxidation and porosity.
  • TIG Welding Machines: Tungsten inert gas welding (TIG) is suitable for high-precision welding, such as thin-walled cylinder barrels or stainless steel components. Manual or automatic TIG welding machines achieve narrow weld seams and high quality, with tensile strength of welds ≥90% of the base material.
  • Laser Welding Machines: For high-end hydraulic cylinders requiring precise and high-strength welding. Laser welding offers fast welding speed (up to 10m/min), small heat-affected zone, and minimal deformation. It is especially suitable for welding thin-walled parts or components with complex structures.

4. Heat Treatment Equipment

Heat treatment improves the mechanical properties (hardness, strength, toughness) of hydraulic cylinder components, enhancing their service life and reliability:
  • Quenching and Tempering Furnaces: Used for heat treatment of cylinder barrels, piston rods, and other load-bearing components. Controlled-atmosphere quenching furnaces ensure uniform heating (temperature uniformity ±5℃) and cooling, achieving hardness HRC 28-35 for cylinder barrels and HRC 45-55 for piston rods after tempering.
  • Induction Hardening Machines: For local heat treatment of piston rod surfaces. Induction hardening achieves surface hardness HRC 55-60 while maintaining the toughness of the core. The hardened layer depth can be adjusted between 1-5mm according to design requirements.
  • Annealing Furnaces: Used for stress relief annealing of welded components, reducing residual stresses caused by welding and preventing deformation during subsequent processing.

5. Assembly and Testing Equipment

The final stage of hydraulic cylinder manufacturing involves assembly and strict testing to ensure product performance meets standards:

5.1 Assembly Equipment

  • Assembly Workbenches: Equipped with lifting devices and positioning fixtures to facilitate the assembly of heavy components. Some workbenches have rotating functions, allowing operators to assemble from different angles.
  • Press Machines: Hydraulic or mechanical press machines are used for pressing pistons, seals, and other components into the cylinder barrel. The pressing force is adjustable (ranging from 5t to 50t) to avoid damage to seals or components.
  • Seal Installation Tools: Specialized tools such as seal expanders and press-in tools ensure correct installation of O-rings, V-rings, and other seals, preventing leakage caused by improper installation.

5.2 Testing Equipment

  • Pressure Testing Machines: Used for hydrostatic pressure testing of hydraulic cylinders. The testing pressure is usually 1.5 times the rated working pressure. The equipment can automatically maintain pressure for 5-30 minutes and detect leakage (allowable leakage ≤0.1ml/min). Some advanced pressure testing machines are equipped with data acquisition systems to record test results.
  • Leakage Testing Machines: Including air tightness testing machines and oil leakage testing machines. Air tightness testing uses differential pressure sensors to detect micro-leakage, while oil leakage testing simulates working conditions to check for external leakage.
  • Performance Testing Platforms: Evaluate the dynamic performance of hydraulic cylinders, such as speed, thrust, and response time. The platform is equipped with flow meters, pressure sensors, and displacement sensors to measure and analyze performance parameters under different working conditions.
  • Non-Destructive Testing (NDT) Equipment: Including ultrasonic flaw detectors, magnetic particle flaw detectors, and penetrant testing equipment. Used to detect internal or surface defects (e.g., cracks, inclusions) in welded joints and key components, ensuring product safety.


6. Auxiliary Equipment

In addition to the above core equipment, hydraulic cylinder manufacturing also requires various auxiliary equipment to ensure smooth production:
  • Cleaning Equipment: Ultrasonic cleaning machines and high-pressure spray cleaning machines remove oil, rust, and debris from components before assembly, preventing contamination of the hydraulic system.
  • Painting Equipment: Spray booths and curing ovens for surface painting of hydraulic cylinders. The painting process improves corrosion resistance, and curing ovens ensure uniform paint drying and adhesion.
  • Material Handling Equipment: Cranes, forklifts, and conveyors for transporting raw materials and finished products, improving production efficiency and safety.
  • Quality Control Equipment: Coordinate measuring machines (CMM), surface roughness testers, and hardness testers for inspecting dimensional accuracy, surface quality, and mechanical properties of components.


The manufacturing of hydraulic cylinders is a complex process involving multiple disciplines such as machining, welding, heat treatment, and assembly. Each production link relies on specialized equipment to ensure product quality and performance. With the development of intelligent manufacturing, more and more CNC, automatic, and intelligent equipment are being applied in hydraulic cylinder production, improving production efficiency, reducing labor costs, and enhancing product consistency. Manufacturers should select appropriate equipment based on product specifications, production scale, and technical requirements to achieve optimal production results.
