Features of Excavator Hydraulic Cylinders and Their Differences from Cylinders in Other Equipment
Date : 2025-09-15 09:09:06Pageviews : 208


Hydraulic cylinders are essential components in numerous mechanical systems, serving as the "muscles" that convert hydraulic energy into linear mechanical motion. Among the various applications of hydraulic cylinders, those used in excavators stand out due to the unique working conditions and performance requirements of excavators. This article will explore the key features of excavator hydraulic cylinders and compare them with cylinders employed in other types of equipment.

1. Key Features of Excavator Hydraulic Cylinders

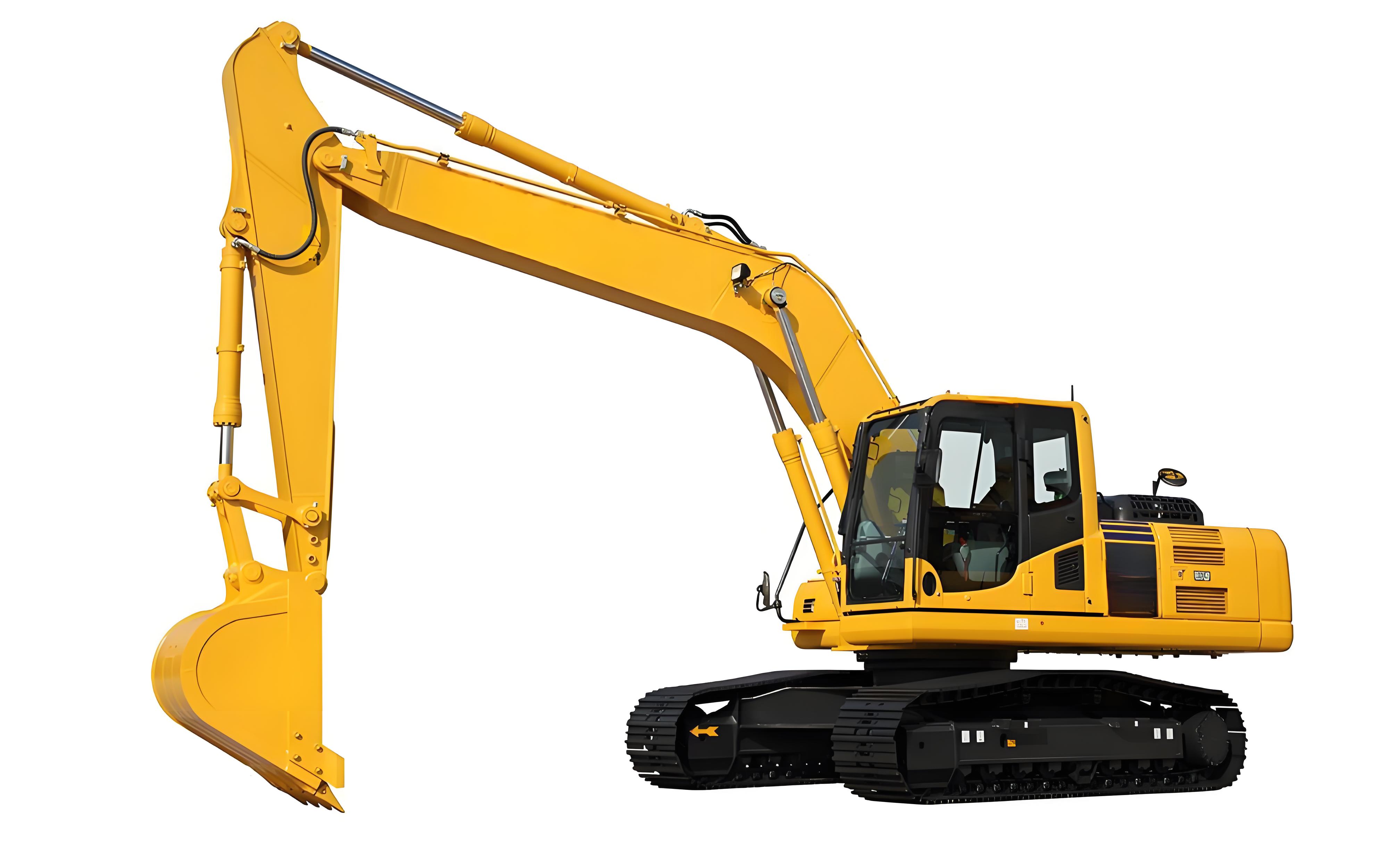

Excavators are heavy-duty machines primarily used for digging, lifting, loading, and grading in construction, mining, and infrastructure projects. Their hydraulic cylinders must withstand extreme forces, harsh environments, and frequent, repetitive movements. As a result, excavator hydraulic cylinders possess the following distinct characteristics:

1.1 High Load-Bearing Capacity

Excavators often handle heavy loads, such as large rocks, soil, or construction materials. To meet this demand, excavator hydraulic cylinders are designed with a robust structure. They feature thick-walled cylinder barrels made of high-strength alloy steel, which can resist high internal pressures (typically ranging from 20 MPa to 40 MPa, and even higher in some heavy-duty models). The pistons and piston rods are also manufactured using high-tensile steel, ensuring they can bear enormous axial forces without deformation or failure. For example, the boom cylinder of a large excavator can support loads of tens of thousands of kilograms, enabling the machine to lift heavy objects with ease.

1.2 Excellent Resistance to Wear and Corrosion

Excavators operate in diverse and harsh environments, including construction sites with dust, gravel, and mud, as well as mining areas with acidic or alkaline substances. Consequently, excavator hydraulic cylinders are equipped with advanced wear-resistant and corrosion-resistant components. The inner surface of the cylinder barrel is precision honed to achieve a smooth finish, reducing friction between the piston and the barrel. The piston rod is coated with hard chrome plating, which has a hardness of over 60 HRC (Rockwell Hardness Scale), providing exceptional wear resistance. Additionally, some cylinders use specialized coatings, such as ceramic coatings or composite coatings, to enhance corrosion resistance, ensuring the cylinders can operate reliably in wet, dusty, or chemically corrosive environments for an extended period.

1.3 High Dynamic Performance

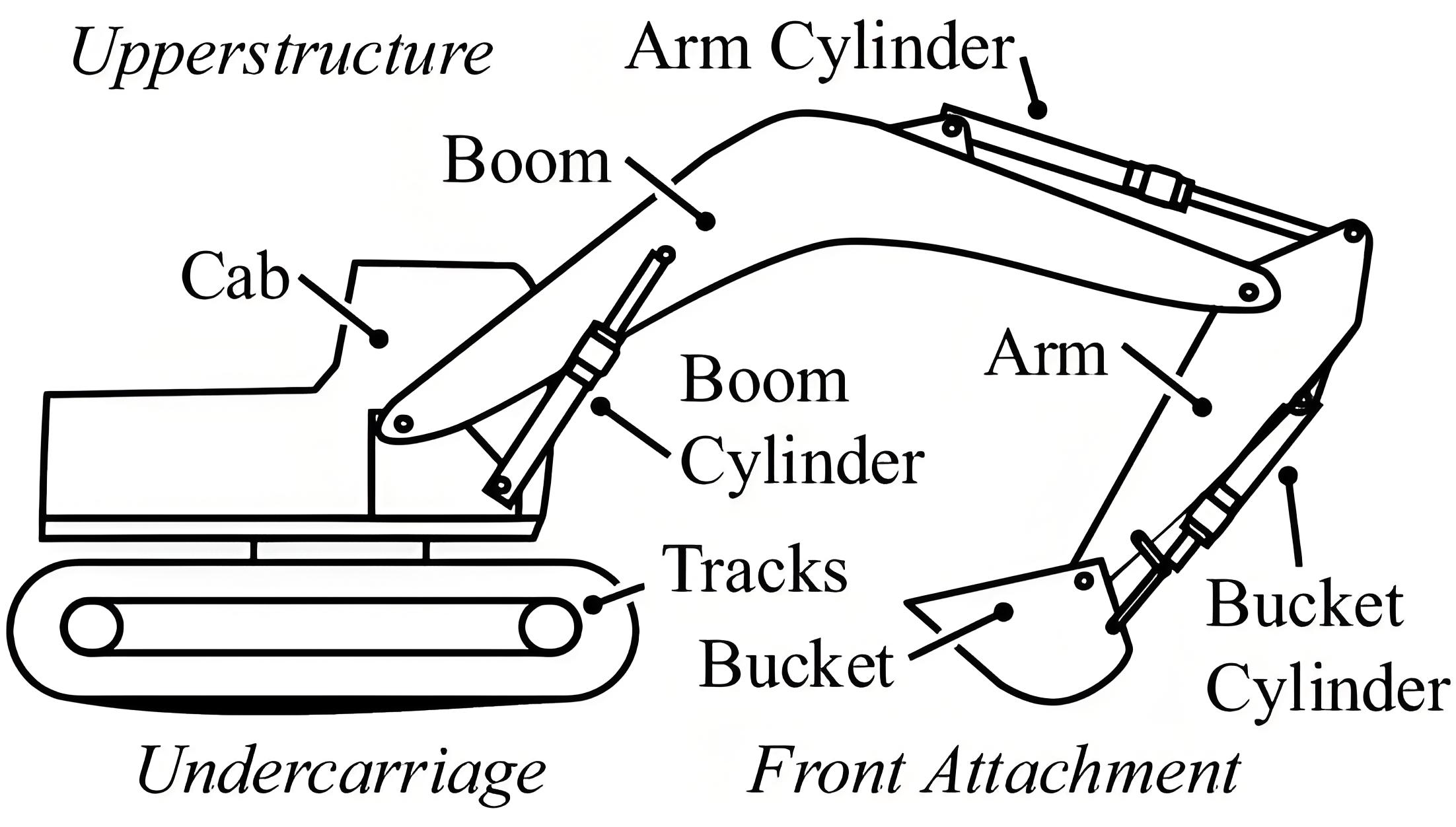

Excavation operations require frequent and rapid movements of the excavator's boom, arm, and bucket. Therefore, excavator hydraulic cylinders must have excellent dynamic performance, including fast response speed, stable operation, and low vibration and noise. To achieve this, the cylinders are designed with optimized internal flow channels, minimizing fluid resistance and ensuring rapid oil flow. The use of high-quality seals and guide rings reduces friction between moving parts, enabling smooth cylinder extension and retraction. Moreover, the hydraulic system of excavators is equipped with advanced control valves, which can precisely regulate the flow and pressure of hydraulic oil, ensuring the cylinders respond quickly and accurately to the operator's commands. Even during rapid start-stop or load changes, the cylinders can maintain stable operation, avoiding sudden jolts or vibrations that could affect the machine's performance and operator comfort.

1.4 Compact Design with High Power Density

Excavators have limited space for installing components, especially in the working arm and bucket areas. Thus, excavator hydraulic cylinders are designed to be compact while delivering high power. By using high-strength materials and optimizing the structural design, the cylinders can achieve a high power-to-weight ratio. For instance, the diameter of the piston rod and cylinder barrel is carefully calculated to ensure maximum force output within a limited space. Additionally, the integration of components such as check valves, relief valves, or position sensors into the cylinder body (known as integrated cylinders) further reduces the overall size and complexity of the hydraulic system, making it easier to install and maintain in the narrow spaces of excavators.







2. Differences Between Excavator Hydraulic Cylinders and Cylinders in Other Equipment

While hydraulic cylinders share the basic principle of converting hydraulic energy into linear motion, their design, performance, and application characteristics vary significantly depending on the equipment they are used in. The following sections compare excavator hydraulic cylinders with those used in industrial machinery, agricultural machinery, and automotive applications.

2.1 Comparison with Industrial Machinery Hydraulic Cylinders

Industrial machinery, such as machine tools, presses, and material handling equipment, operates in relatively stable and clean environments compared to excavators. As a result, the hydraulic cylinders used in industrial machinery differ from those in excavators in several aspects:
  • Load Requirements: Industrial machinery often requires precise control of force and position rather than extremely high load-bearing capacity. For example, a hydraulic press may need to apply a specific pressure to shape a workpiece, while a machine tool's hydraulic cylinder needs to achieve accurate linear positioning. In contrast, excavator cylinders must handle much higher dynamic and static loads due to the heavy-duty nature of excavation work.
  • Environmental Resistance: Since industrial machinery operates in clean workshops, their hydraulic cylinders have lower requirements for wear and corrosion resistance. They may use standard steel materials and basic surface treatments, such as zinc plating, instead of the hard chrome plating or specialized coatings used in excavator cylinders. Dust and moisture are less of a concern, so the sealing systems of industrial cylinders may be simpler, focusing more on preventing internal oil leakage rather than external contamination.
  • Precision and Control: Industrial machinery places a higher emphasis on precision and repeatability. Hydraulic cylinders in machine tools, for example, need to achieve micron-level positioning accuracy to ensure the quality of machined parts. This requires the use of high-precision components, such as servo valves and linear encoders, and strict manufacturing tolerances. Excavator cylinders, while requiring good dynamic performance, do not need the same level of precision as industrial cylinders, as the operator can make real-time adjustments during operation.

2.2 Comparison with Agricultural Machinery Hydraulic Cylinders

Agricultural machinery, including tractors, harvesters, and sprayers, is used in farm fields, which have their own unique environmental conditions (e.g., soil, crop residues, and exposure to fertilizers and pesticides). Hydraulic cylinders for agricultural machinery differ from excavator cylinders in the following ways:
  • Working Conditions: Agricultural machinery operates in relatively milder conditions compared to excavators. Although farm fields can be muddy or dusty, the loads and impact forces are generally lower than those encountered by excavators. For example, a tractor's hydraulic cylinder used to lift a plow or implement typically handles loads of a few thousand kilograms, much less than the tens of thousands of kilograms handled by an excavator's boom cylinder.
  • Corrosion Resistance Requirements: Agricultural machinery is often exposed to fertilizers and pesticides, which can be corrosive. However, the corrosion environment is not as severe as that in mining or construction sites. Agricultural hydraulic cylinders may use galvanized or painted surfaces for corrosion protection, which is less expensive than the hard chrome plating or ceramic coatings used in excavator cylinders.
  • Cost and Maintenance: Agricultural machinery is usually designed to be cost-effective, and its hydraulic cylinders are no exception. They may use simpler designs and standard components to reduce manufacturing costs. Maintenance requirements are also lower, as agricultural operations are often seasonal, and the machinery can be inspected and maintained during off-seasons. In contrast, excavator cylinders require more frequent maintenance and replacement of parts due to the harsh working conditions and high usage intensity.

2.3 Comparison with Automotive Hydraulic Cylinders

Automotive hydraulic cylinders are used in applications such as brake systems, clutch systems, and suspension systems. They are significantly different from excavator hydraulic cylinders in terms of size, performance, and function:
  • Size and Force Output: Automotive hydraulic cylinders are much smaller in size compared to excavator cylinders. For example, a brake cylinder in a car has a diameter of only a few centimeters, while an excavator's boom cylinder can have a diameter of over 10 centimeters. The force output of automotive cylinders is also much lower, as they only need to generate enough force to actuate brakes or clutches, typically ranging from a few hundred to a few thousand newtons. Excavator cylinders, on the other hand, need to generate forces of tens of thousands to hundreds of thousands of newtons to lift heavy loads.
  • Operating Pressure: The operating pressure of automotive hydraulic systems is relatively low, usually between 10 MPa and 20 MPa. This is because the required force is small, and lower pressure helps reduce the size and weight of the hydraulic components. Excavator hydraulic systems, however, operate at much higher pressures (20 MPa to 40 MPa or more) to achieve the high force output needed for heavy-duty operations.
  • Function and Control: Automotive hydraulic cylinders have specific, single functions. For example, a brake cylinder is only responsible for applying pressure to the brake pads to stop the vehicle, and its operation is controlled by the driver's foot pedal. Excavator hydraulic cylinders, on the other hand, are part of a complex hydraulic system that controls multiple movements (boom lifting/lowering, arm extending/retracting, bucket digging/dumping) simultaneously. The control of excavator cylinders is more complex, requiring the coordination of multiple control valves and sensors to ensure smooth and precise operation.

3. Conclusion

Excavator hydraulic cylinders are specialized components designed to meet the demanding requirements of heavy-duty excavation operations. Their high load-bearing capacity, excellent wear and corrosion resistance, high dynamic performance, and compact design with high power density make them well-suited for the harsh and dynamic working environments of excavators. When compared to hydraulic cylinders used in industrial machinery, agricultural machinery, and automotive applications, excavator cylinders stand out due to their ability to withstand extreme loads, resist harsh environmental conditions, and deliver high power in a compact form. Understanding these features and differences is crucial for the design, selection, maintenance, and repair of hydraulic systems in various types of equipment, ensuring optimal performance and reliability.
